F-14 Rear Bumper
F-14 Rear Bumper
Couldn't load pickup availability
Pre Order Lead Time: 6-8 weeks.
F-14 Pre-Order Sale - Limited to the first 5 orders only.
To help launch the F-14 Rear Bumper into production, we are offering a 15% pre-order discount on the rear bumper only. Please note that this discount does not apply to swing outs or additional accessories.
Pre orders help offset some of the costs associated with bringing a new product to market, including prototyping, tooling, testing, and production setup. Your support allows us to continue developing and refining products while maintaining the quality and attention to detail that VIDAL METAL WORX is known for.
Please be aware that the F-14 Rear Bumper is a built to order product. We are currently fulfilling existing customer orders while preparing for F-14 production, so lead times will apply. As with all of our products, each bumper is fabricated to order and not pulled from inventory. We appreciate your patience and support as we work through our production schedule and continue delivering quality products to every customer.
Please see the Processing Time and Shipping Information sections at the bottom of this description.

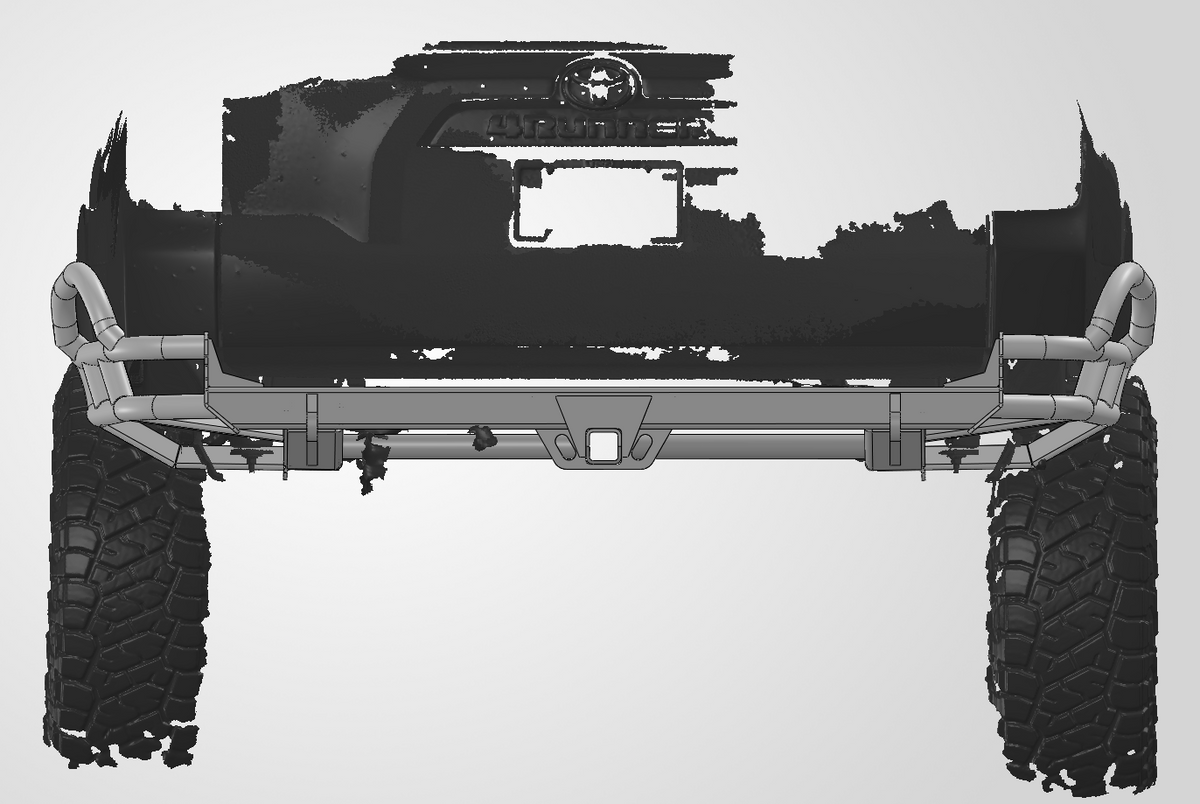

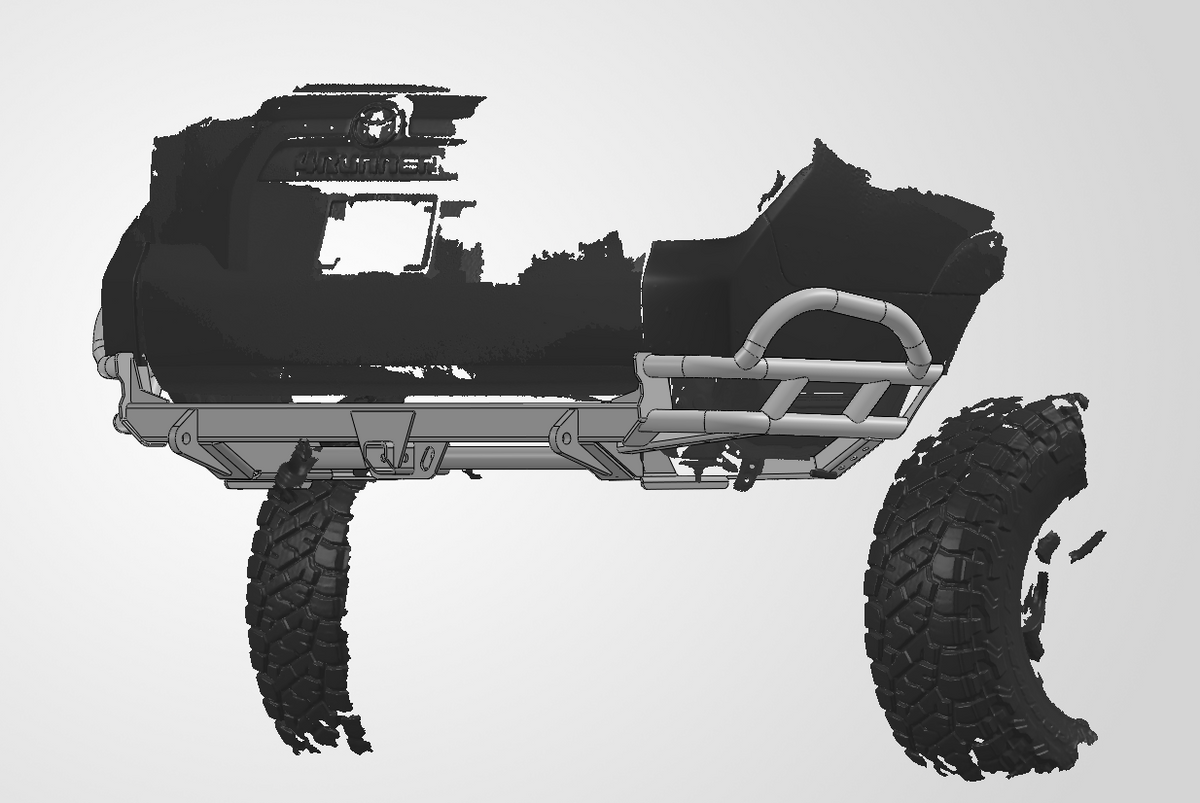

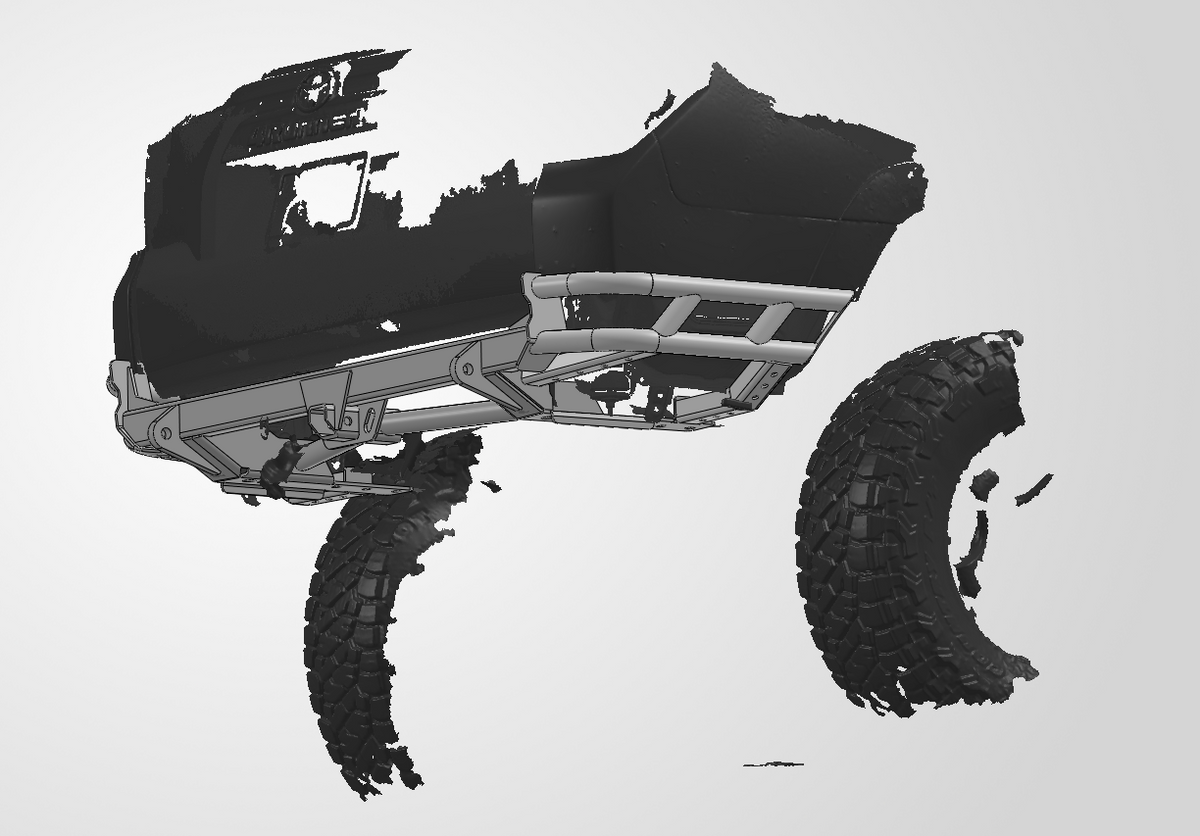

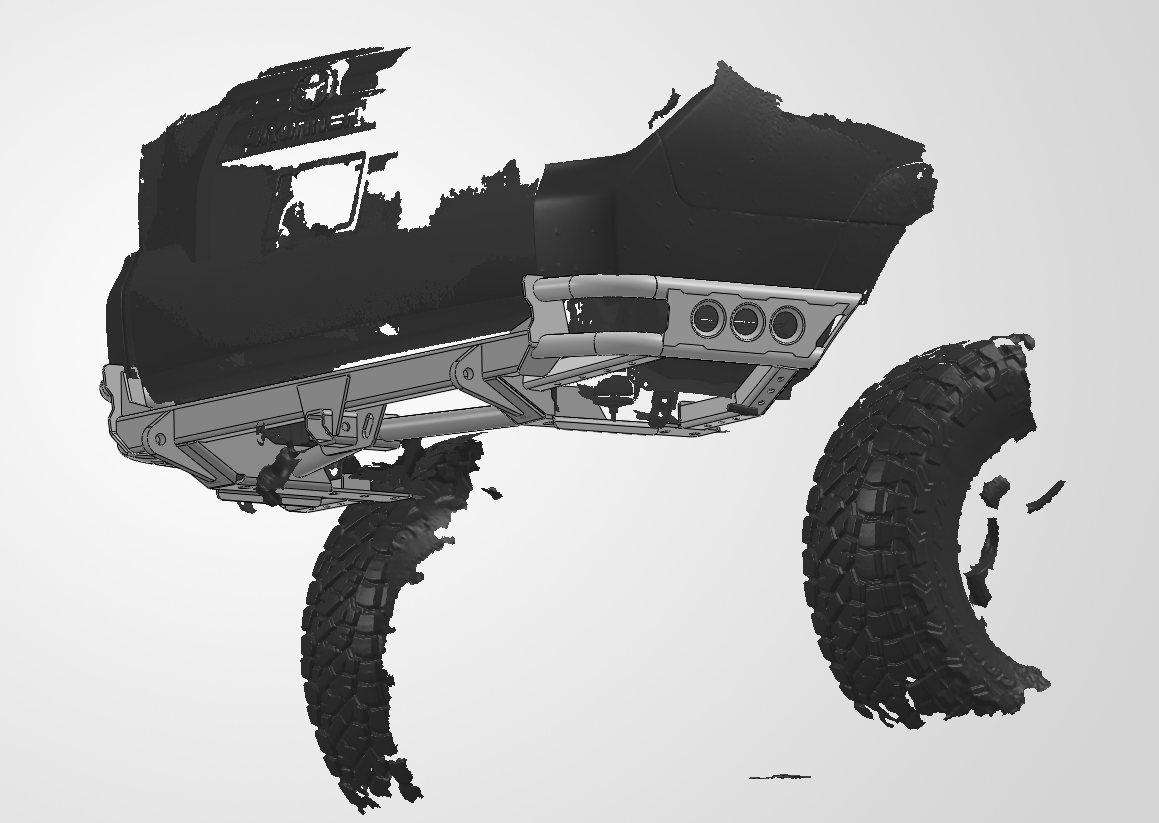

The F-14 Rear Bumper is purpose built for the 5th Gen 4Runner, combining precision engineering, strength, and functionality in a low profile rear bumper package.
Every cut, bend, corner, and feature was created with intent. Nothing is accidental. The result is a bumper that delivers exceptional fitment, structural integrity, and a clean, purposeful appearance.
The F-14 utilizes heavy duty frame mounting brackets engineered to distribute loads across the chassis while maintaining a lightweight, high clearance design. The side sections are constructed from 1.75" x .120" DOM tubing, providing excellent strength while helping reduce unnecessary weight. Each side mounts using five factory mounting locations, with an additional optional upper mounting point available, bringing the total to twelve mounting points for maximum strength and stability.

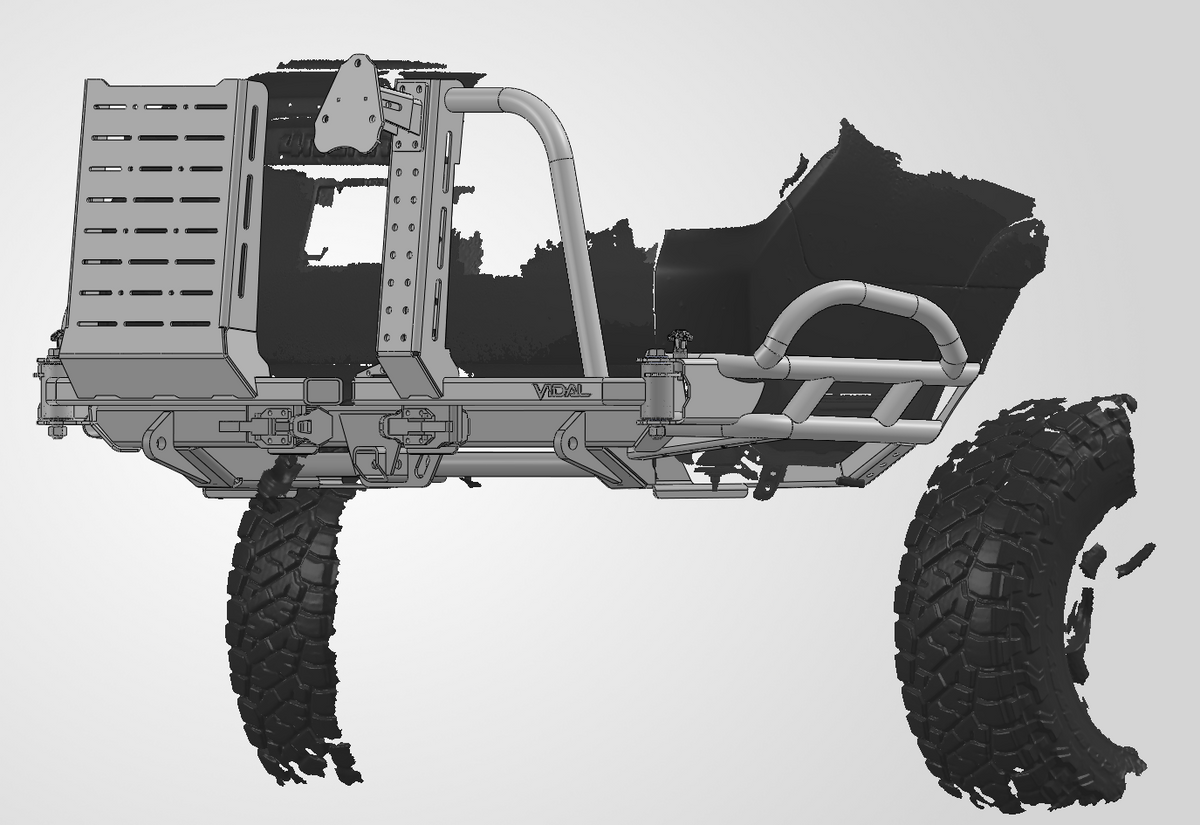

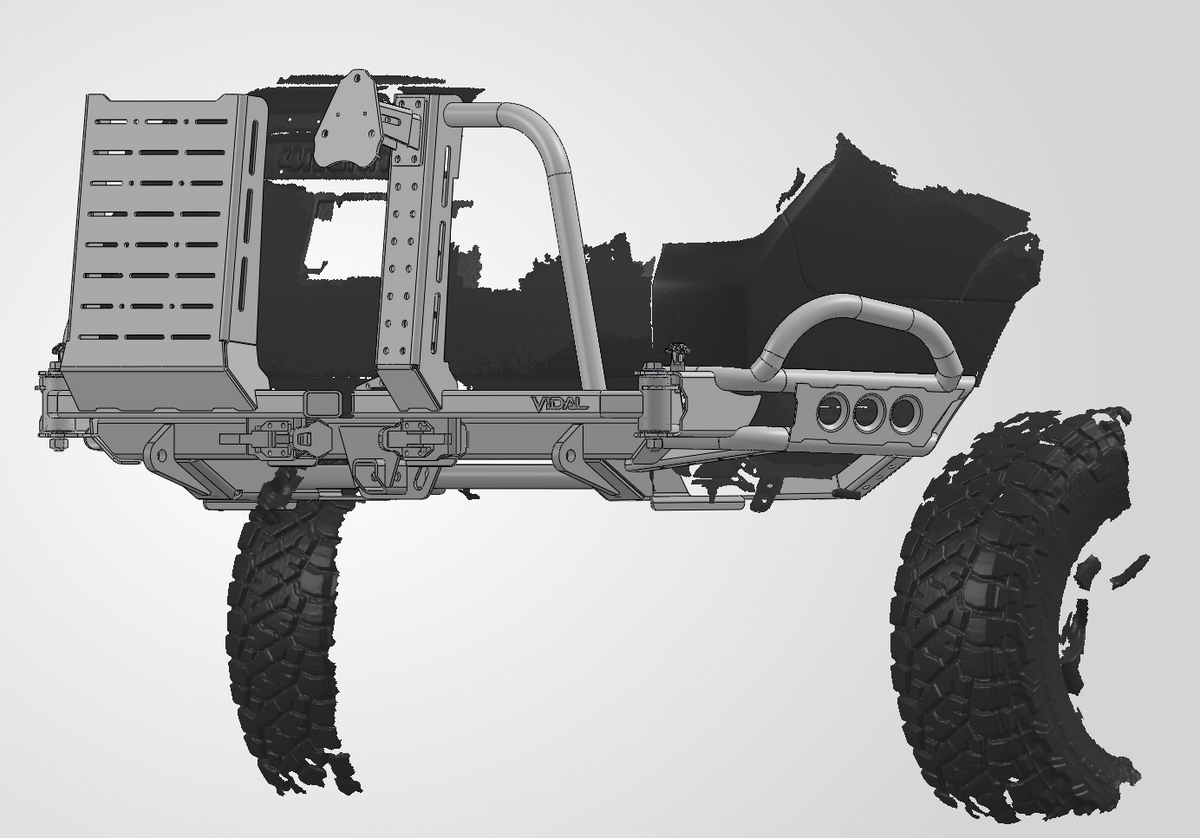

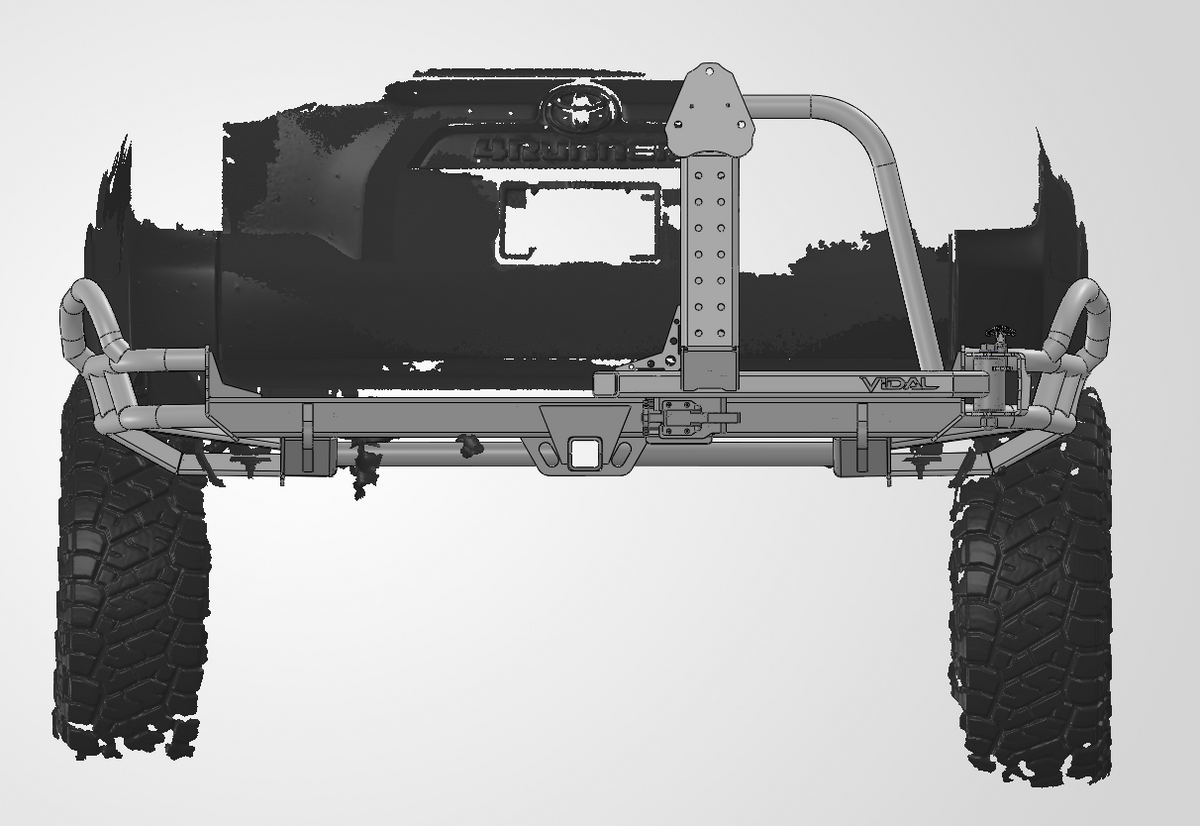

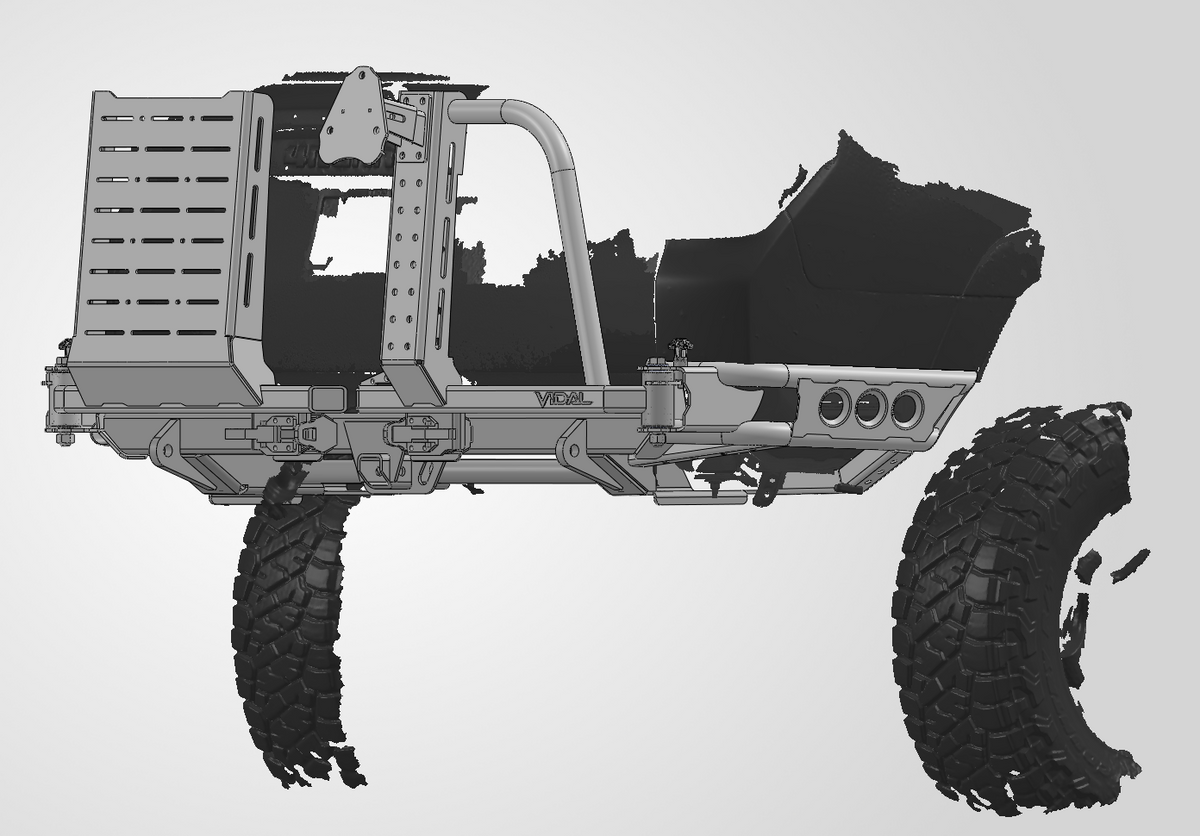

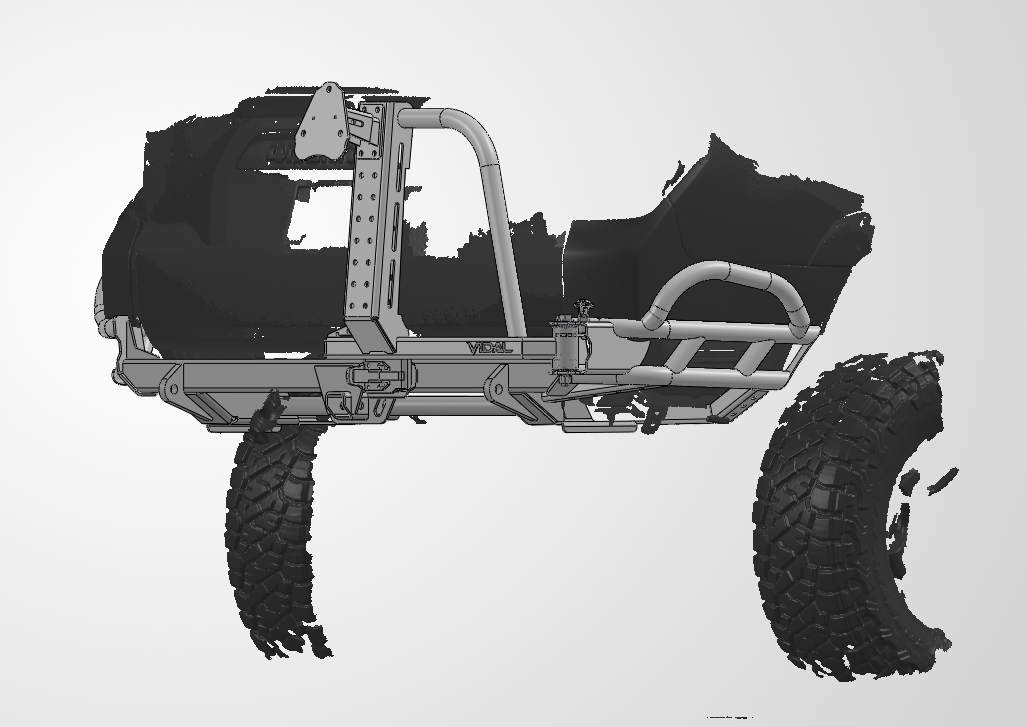

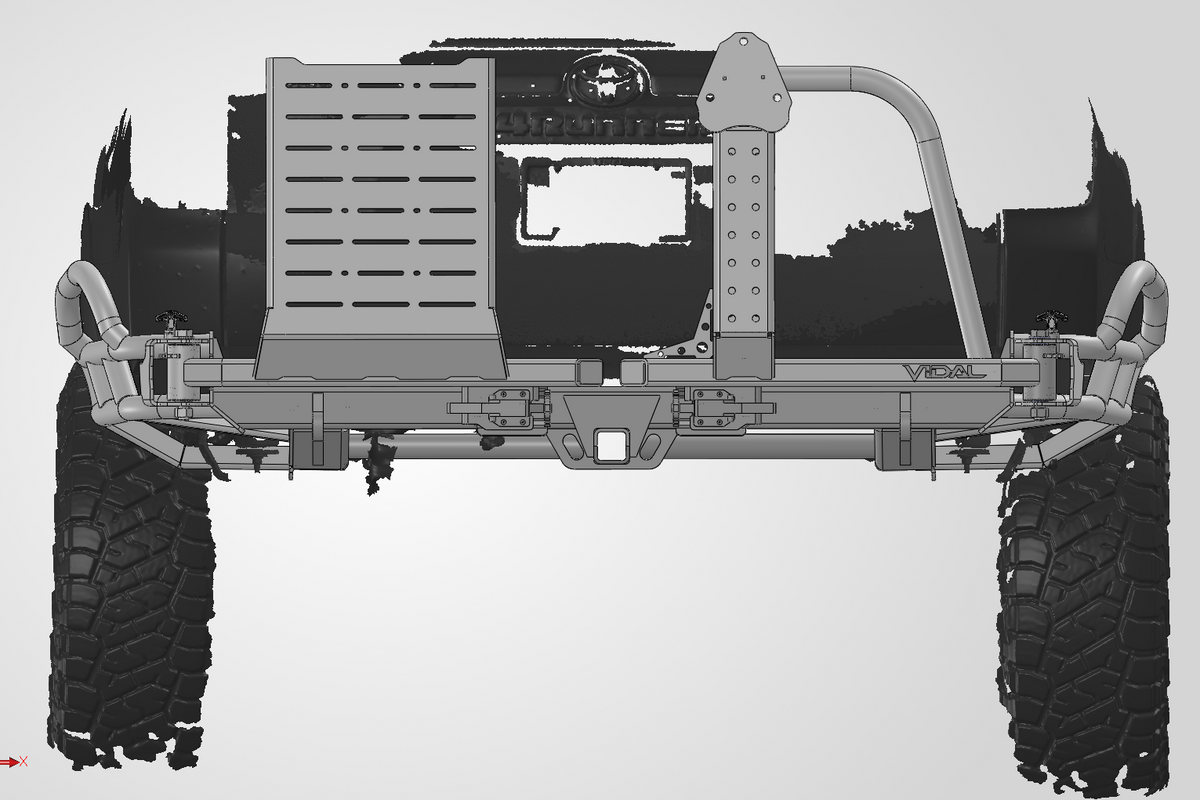

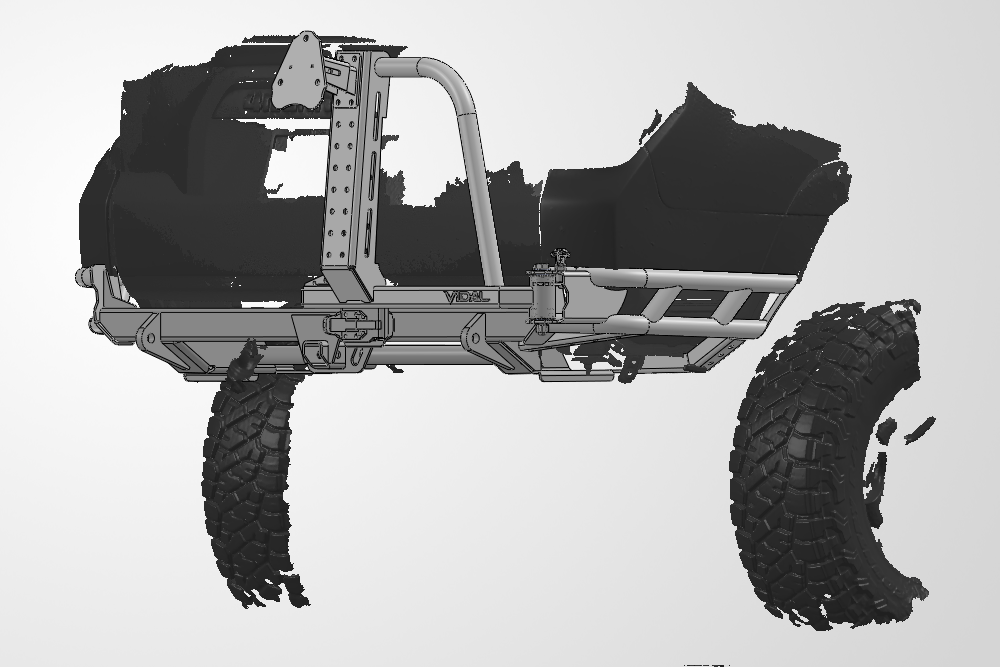

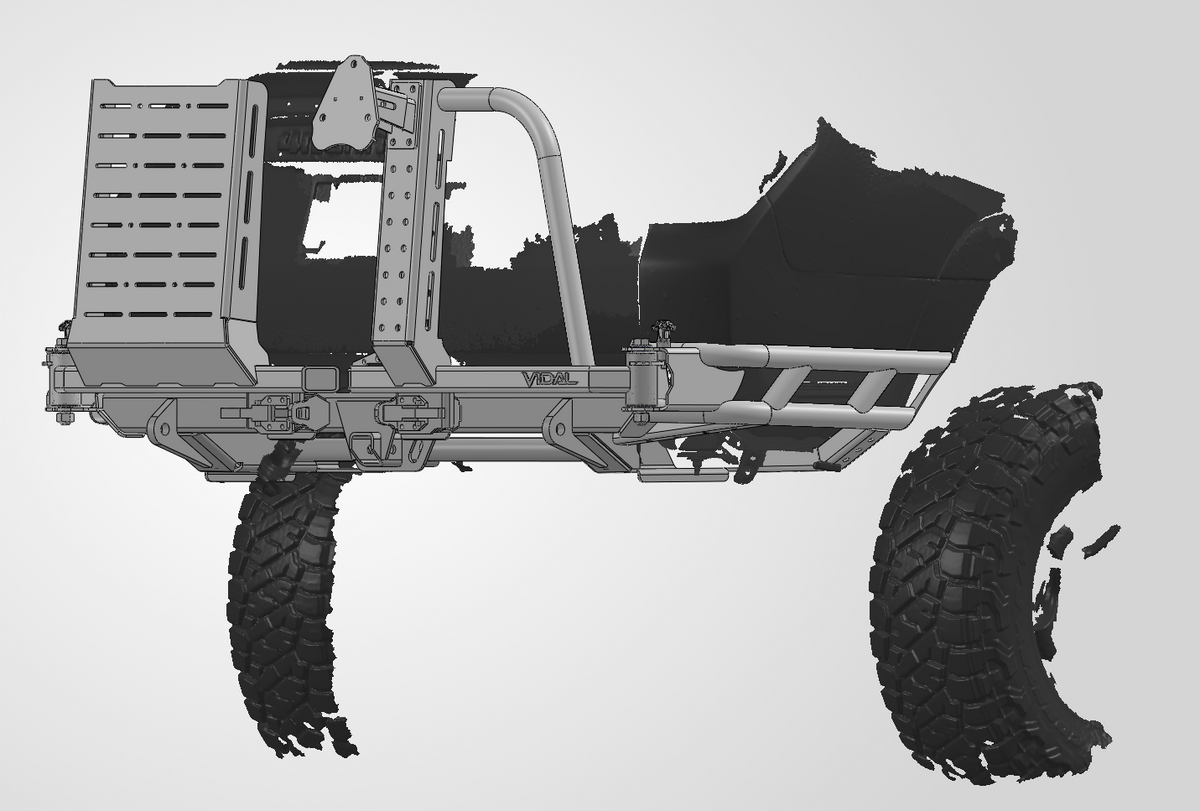

For customers choosing a swing out configuration, the F-14 comes equipped with our wedge lock out system. Designed to create a solid hold, the wedge system helps minimize tire and accessory movement when navigating rough terrain. Every swing out system also comes standard with the E3 Machine Ultimate Billet Latch, providing smooth operation, secure engagement, and long term durability.
Whether configured as a standalone bumper or equipped with one or more swing outs, the F-14 was designed to provide the strength, reliability, and attention to detail that define every VIDAL METAL WORX product.
Features
- Low profile design
- 1.75" x .120" DOM tubing side wings
- Heavy duty frame mounting brackets
- Five mounting points per side
- Optional upper mounting points for a total of 12 mounting locations
- Integrated 3/4" recovery clevis mounts
- Available with or without swing outs
- Wedge lock out system to help minimize tire and accessory movement
- E3 Machine Ultimate Billet Latch standard on all swing out systems
- Precision laser cut and CNC-formed components
- Proudly built in Southern California
Specifications
- Base bumper weight: approximately 120 lbs
- Each swing out adds approximately 45-55 lbs
Installation Notes
- Rear crossmember must be cut and removed for installation
- Some trimming of the frame is required
- Rear OEM Bumper Cover will need to be cut and trimmed
Compatible with Non Body Lift Vehicles Only
Processing Time
Orders are processed in the order they are received. Lead times are estimates and may vary depending on workload. Delays may occur during high volume periods, holidays, or due to unforeseen circumstances.
Shipping
F-14 Rear Bumper orders ship to your designated FedEx Freight terminal for pickup. Please use the link below to locate the FedEx Freight facility nearest you.
