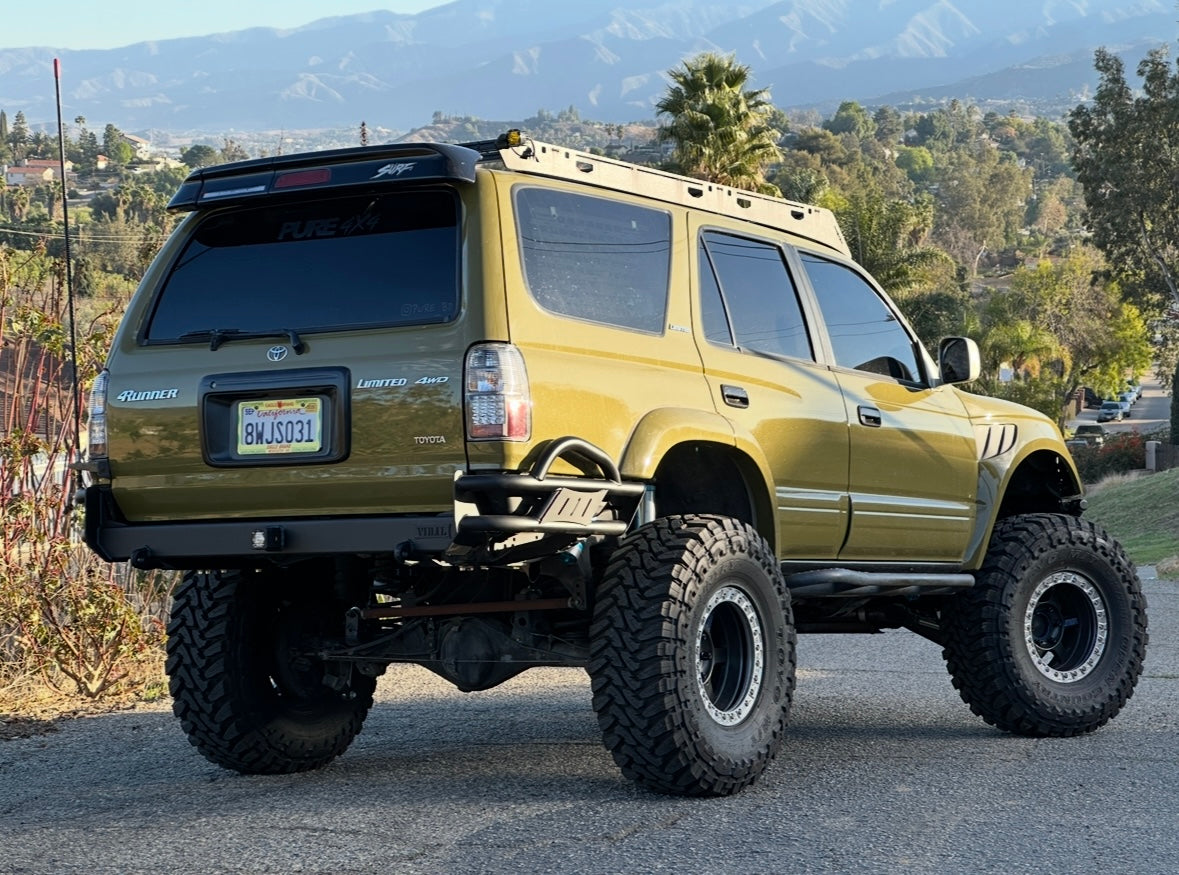

F-14D Rear Tube Bumper

F-14D Rear Tube Bumper

Regular price $1,599.00 USD
Regular price Sale price $1,599.00 USD
Sale Sold out
Free Shipping
Style
Body Lift
CURRENT LEAD TIME: 8-12 WEEKS

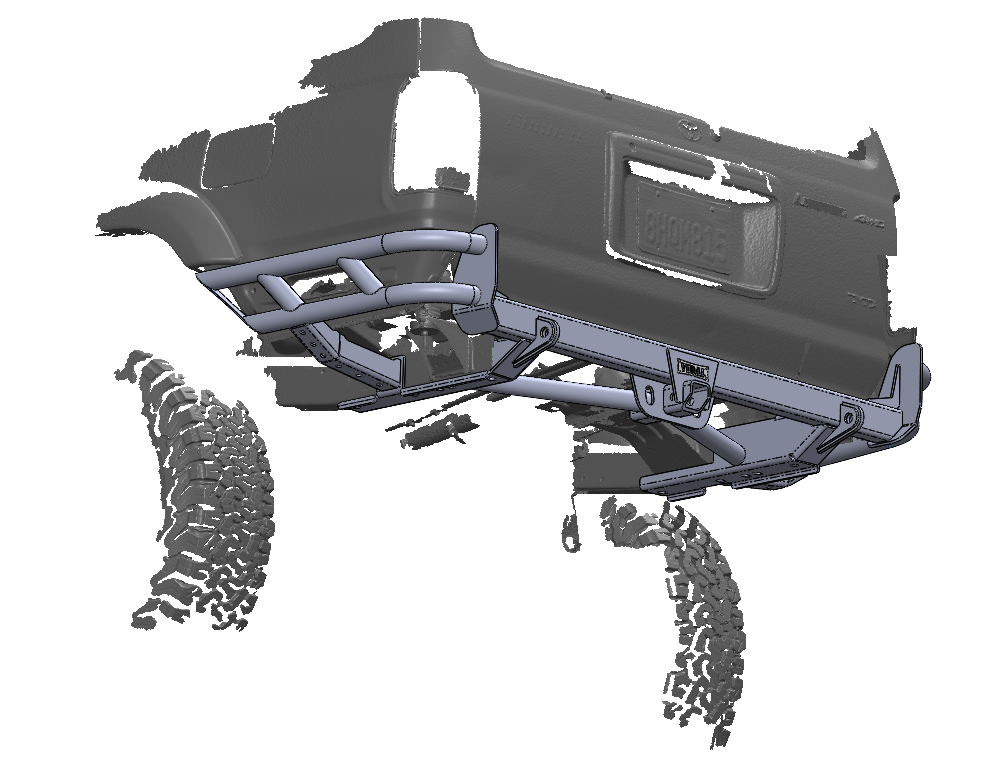

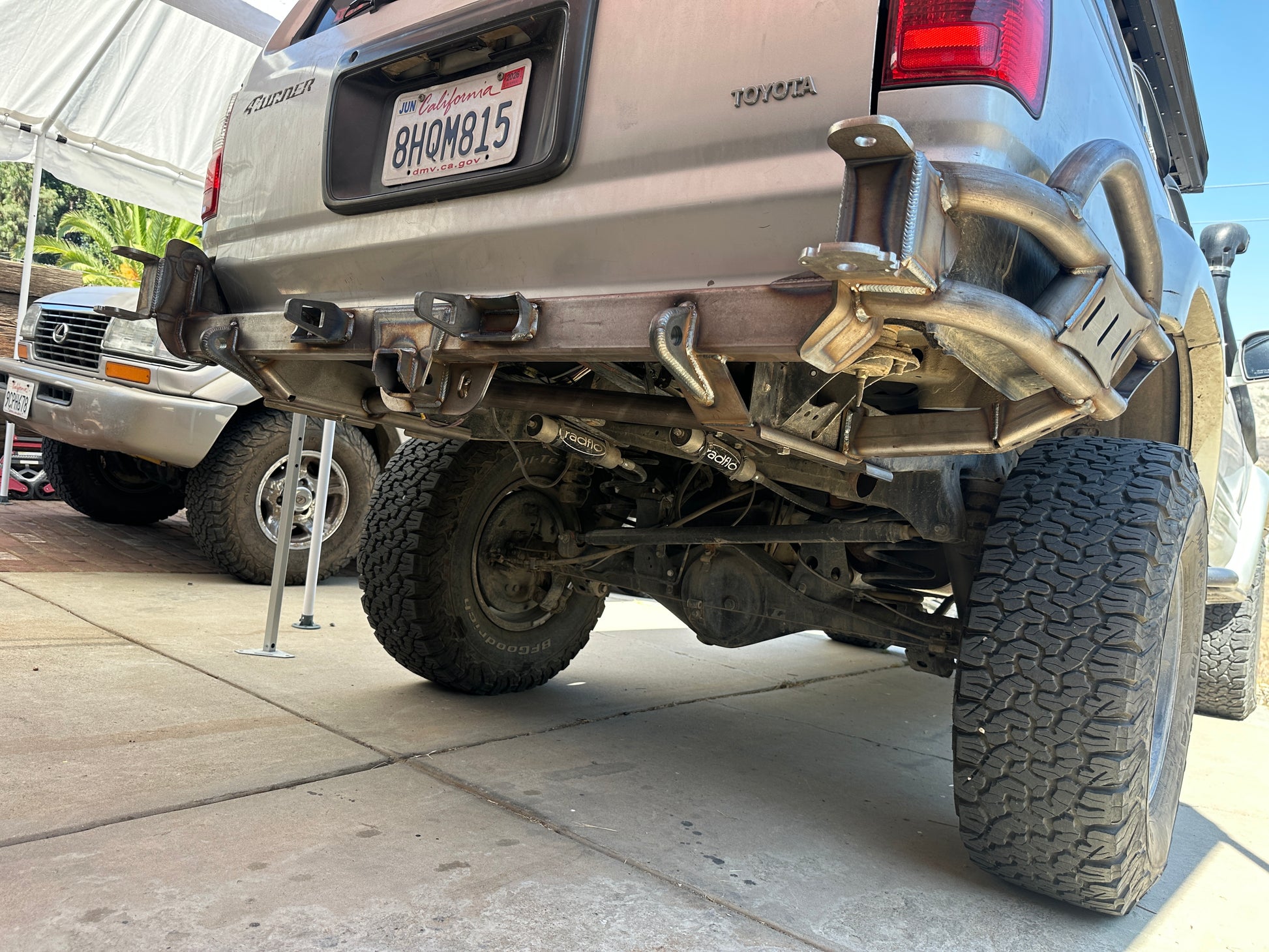

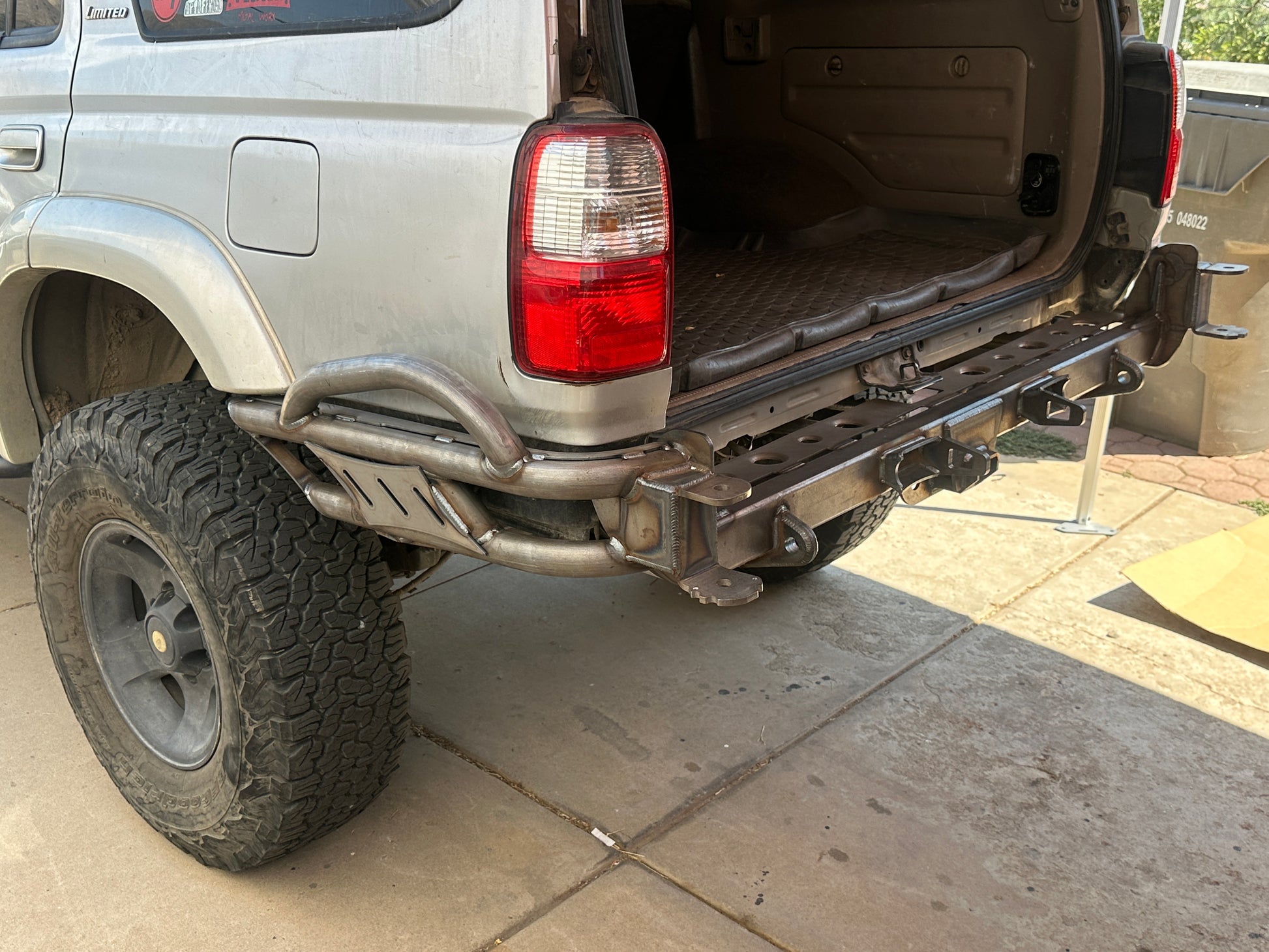

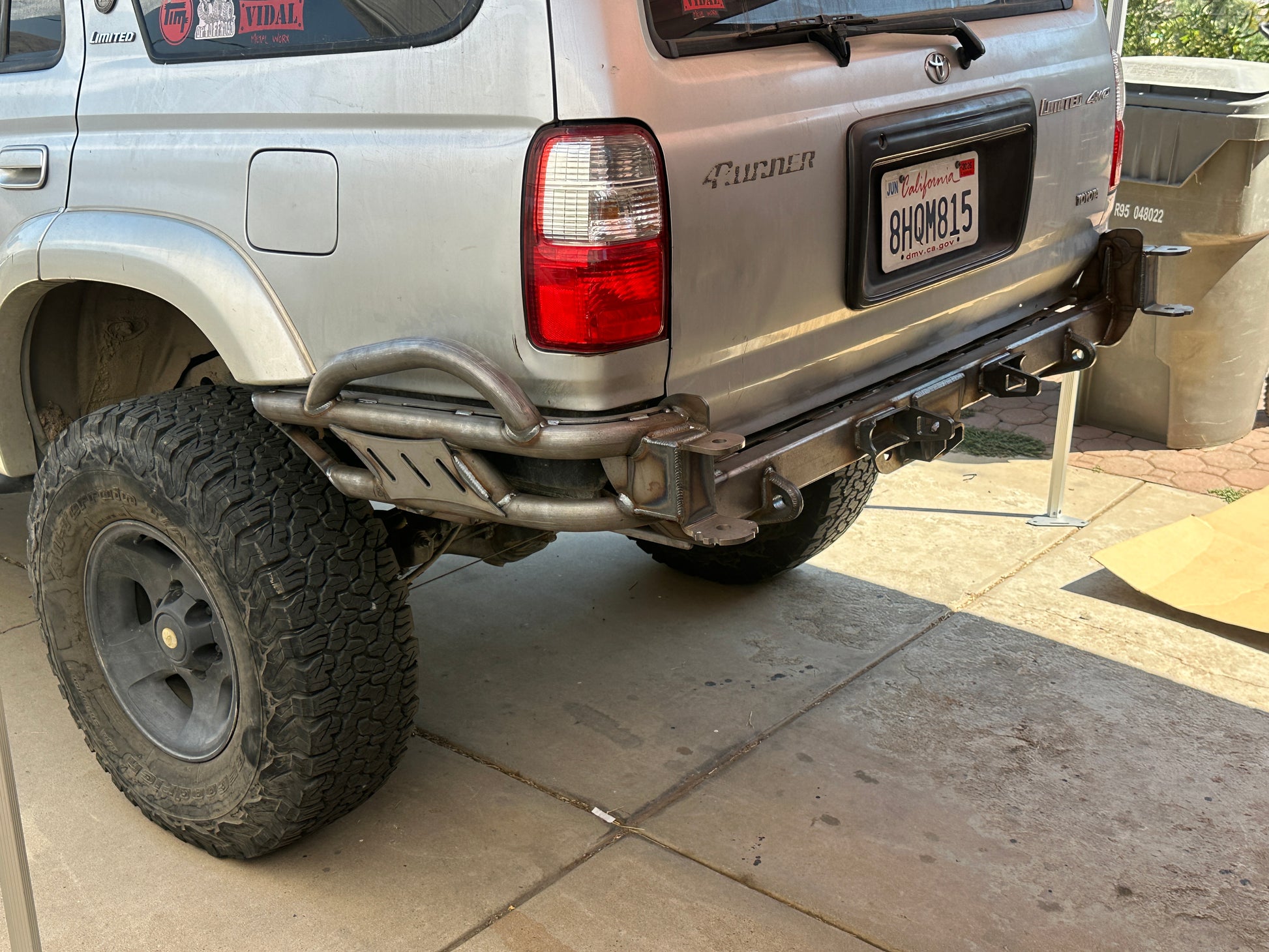

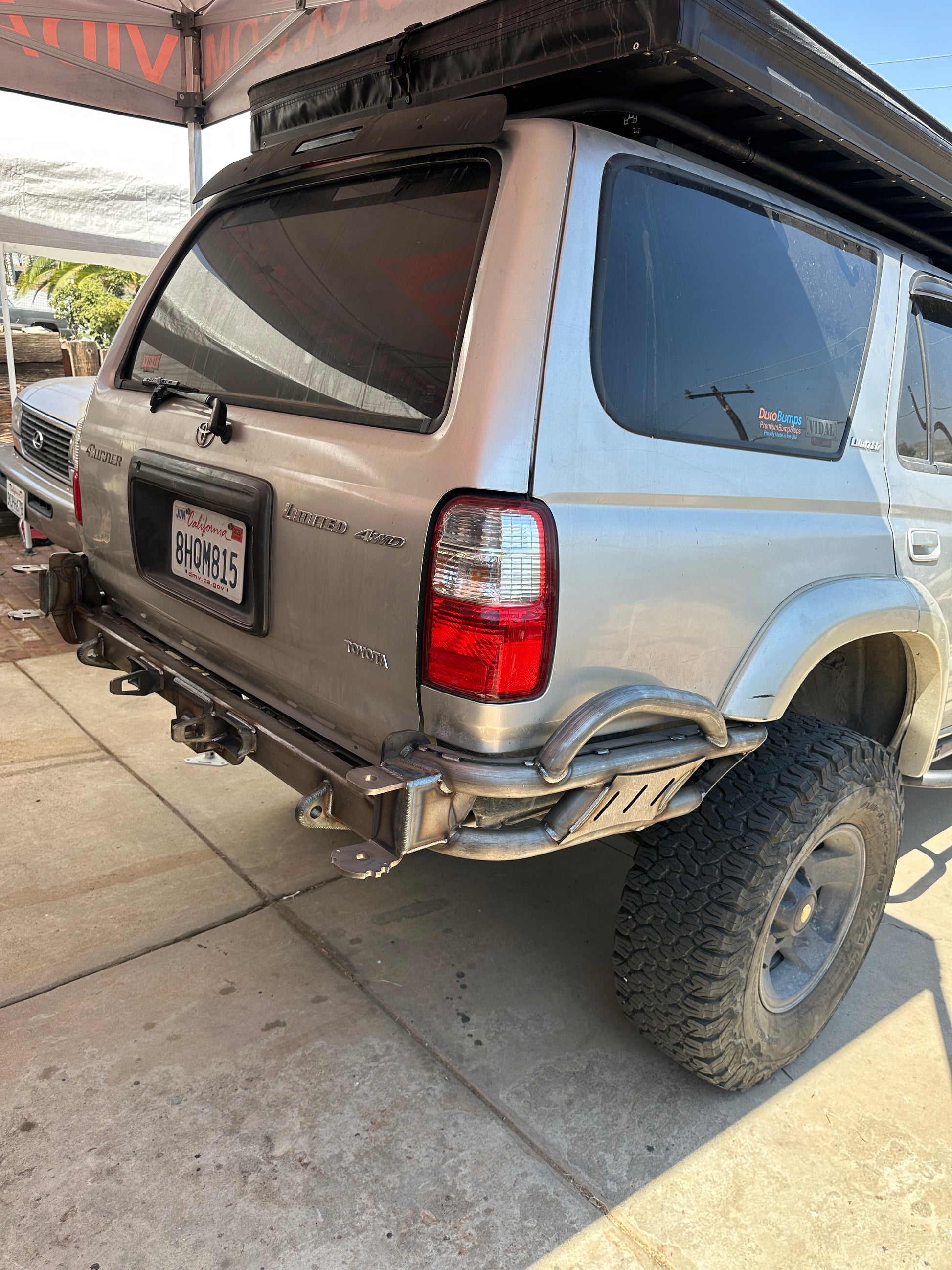

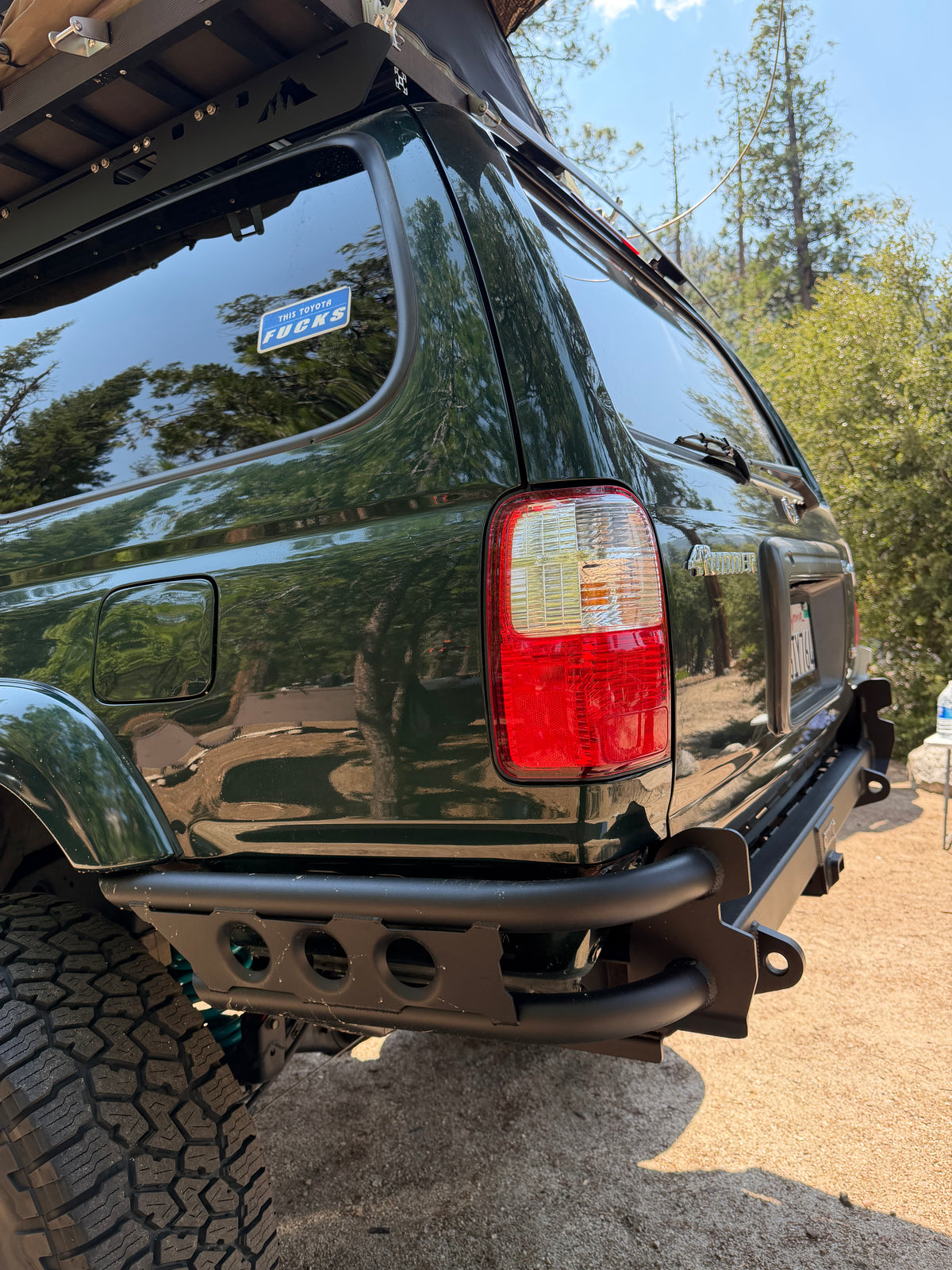

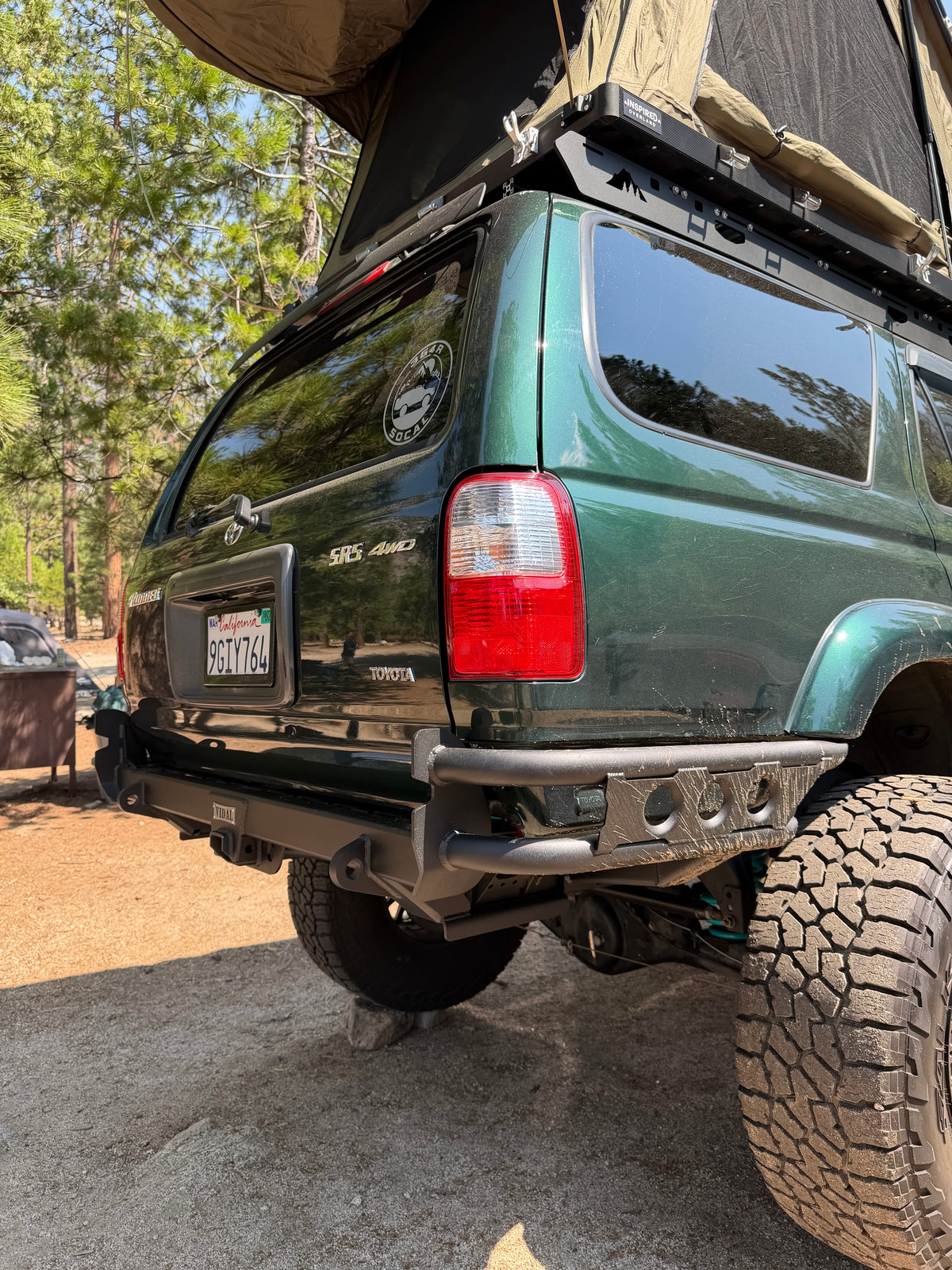

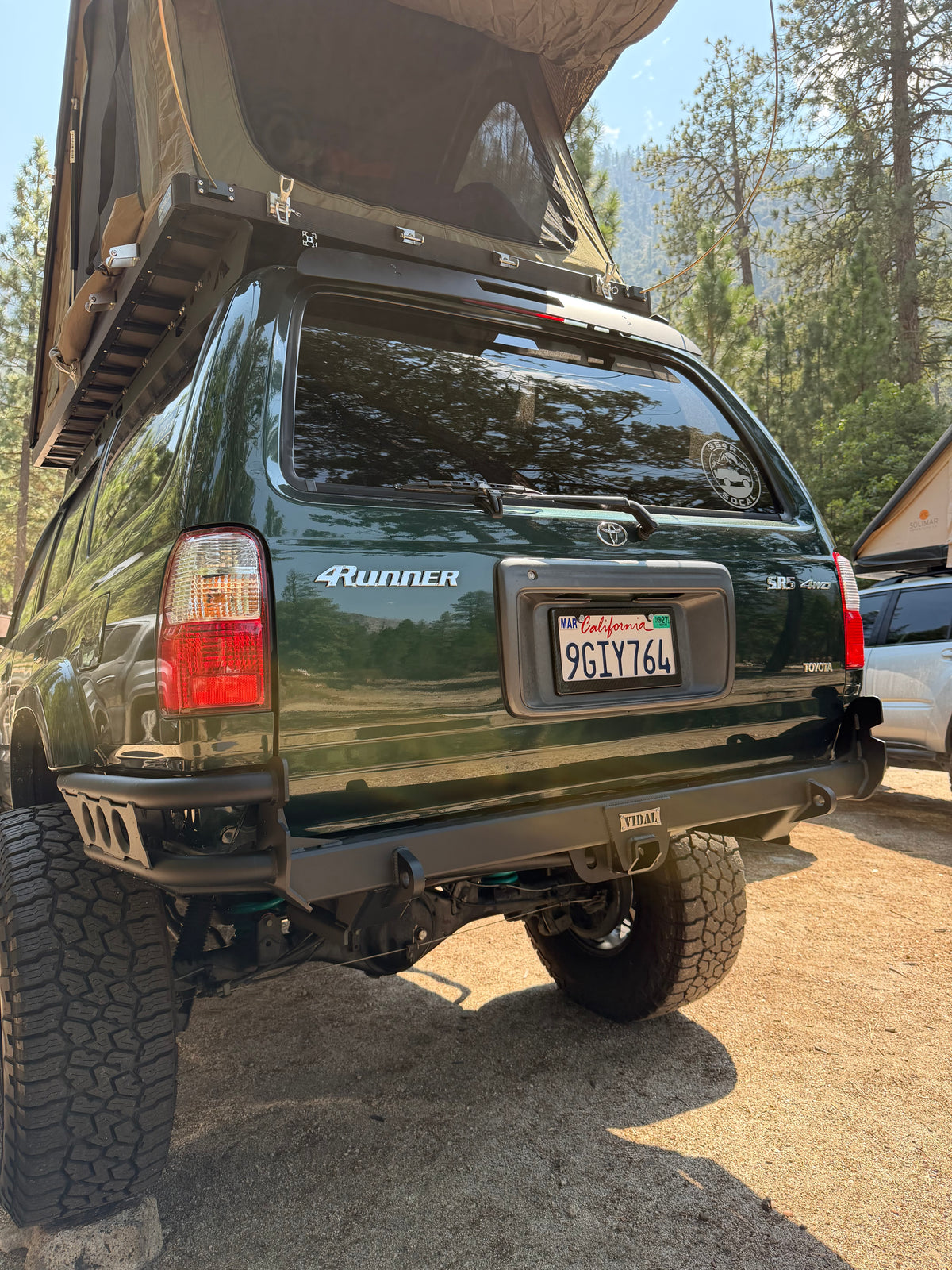

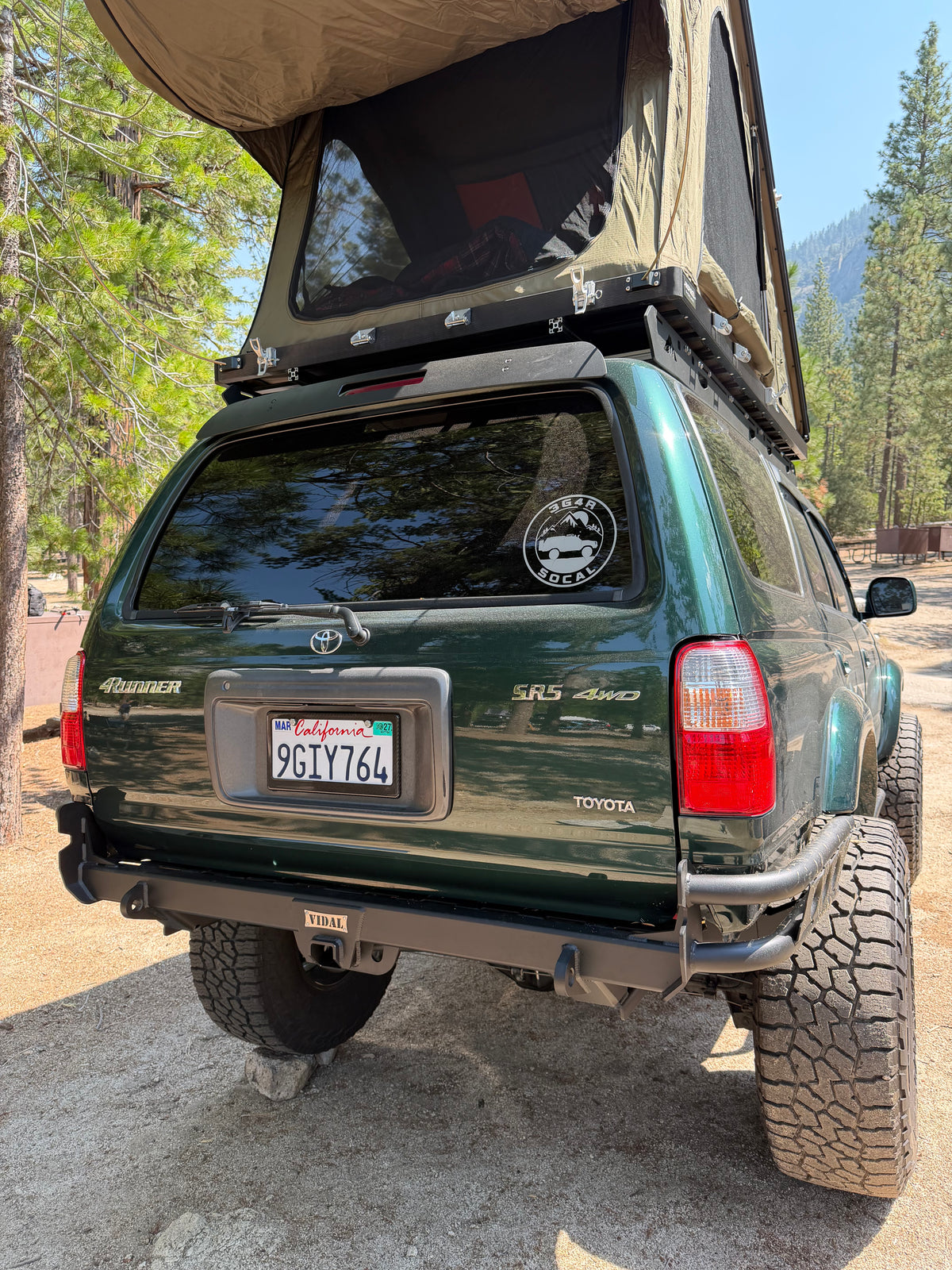

Introducing the F-14D rear tube bumper. This bumper is fully bolt on so no need for any additional trimming or welding. All of our bumpers are made in SoCal U.S.A.
Our bumpers come standard with the best latches in the industry! The E3 Machine Ultimate Billet Latch is a compression latch with a spring pin for that positive lock you crave. The design also features a pad lock hole if you want to keep your belongings safe.
Customize your bumper!

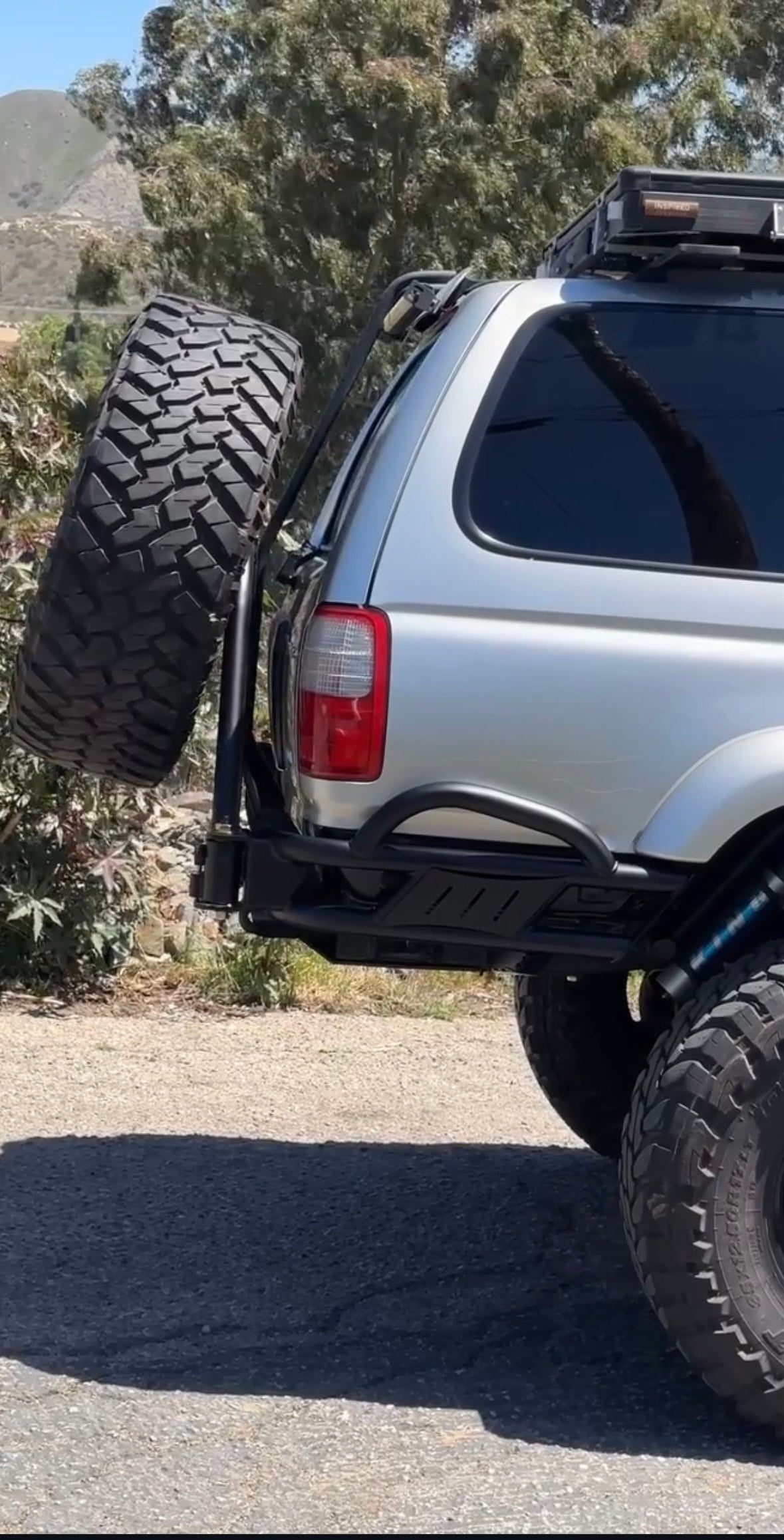

  • Single Swing Out - Half Arm
  • Single Swing out - Full Arm

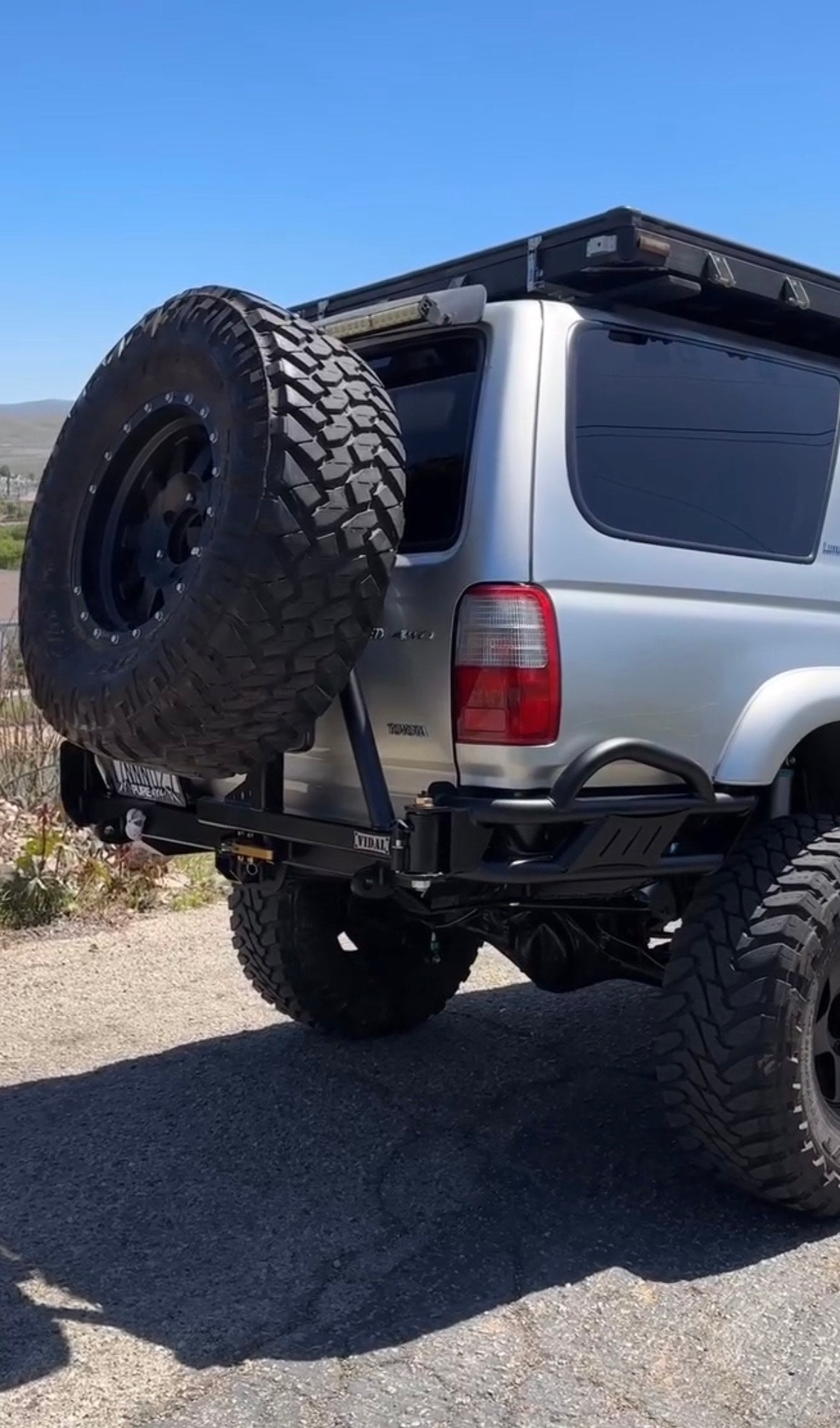

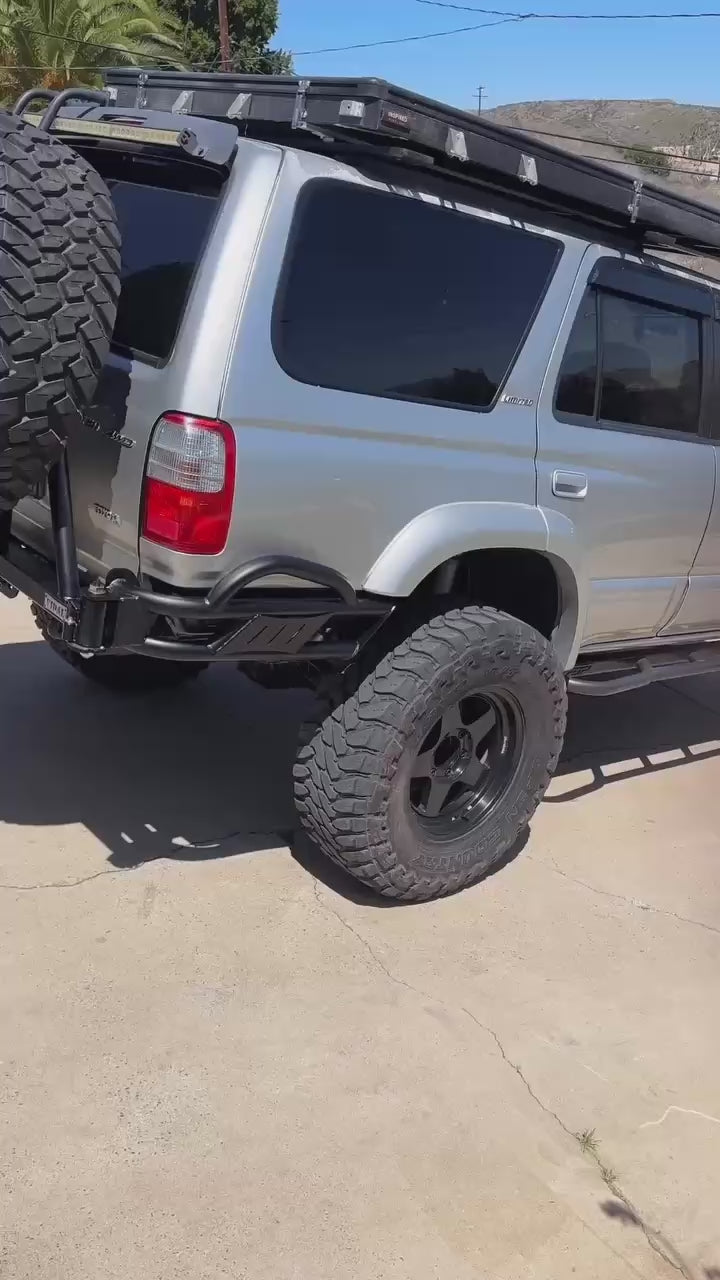

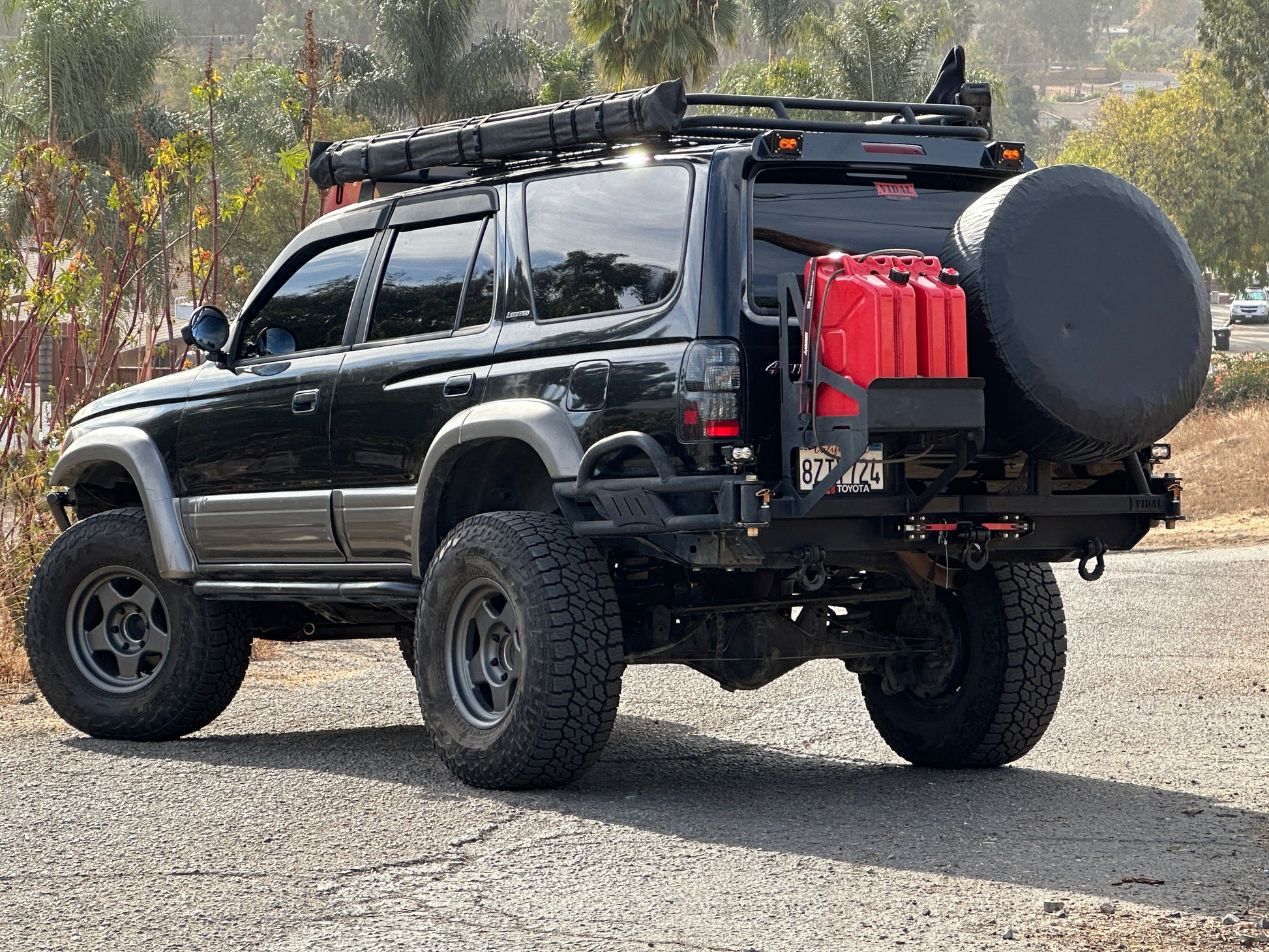

  • Dual Swing out - Single/Dual Jerry Can Holder

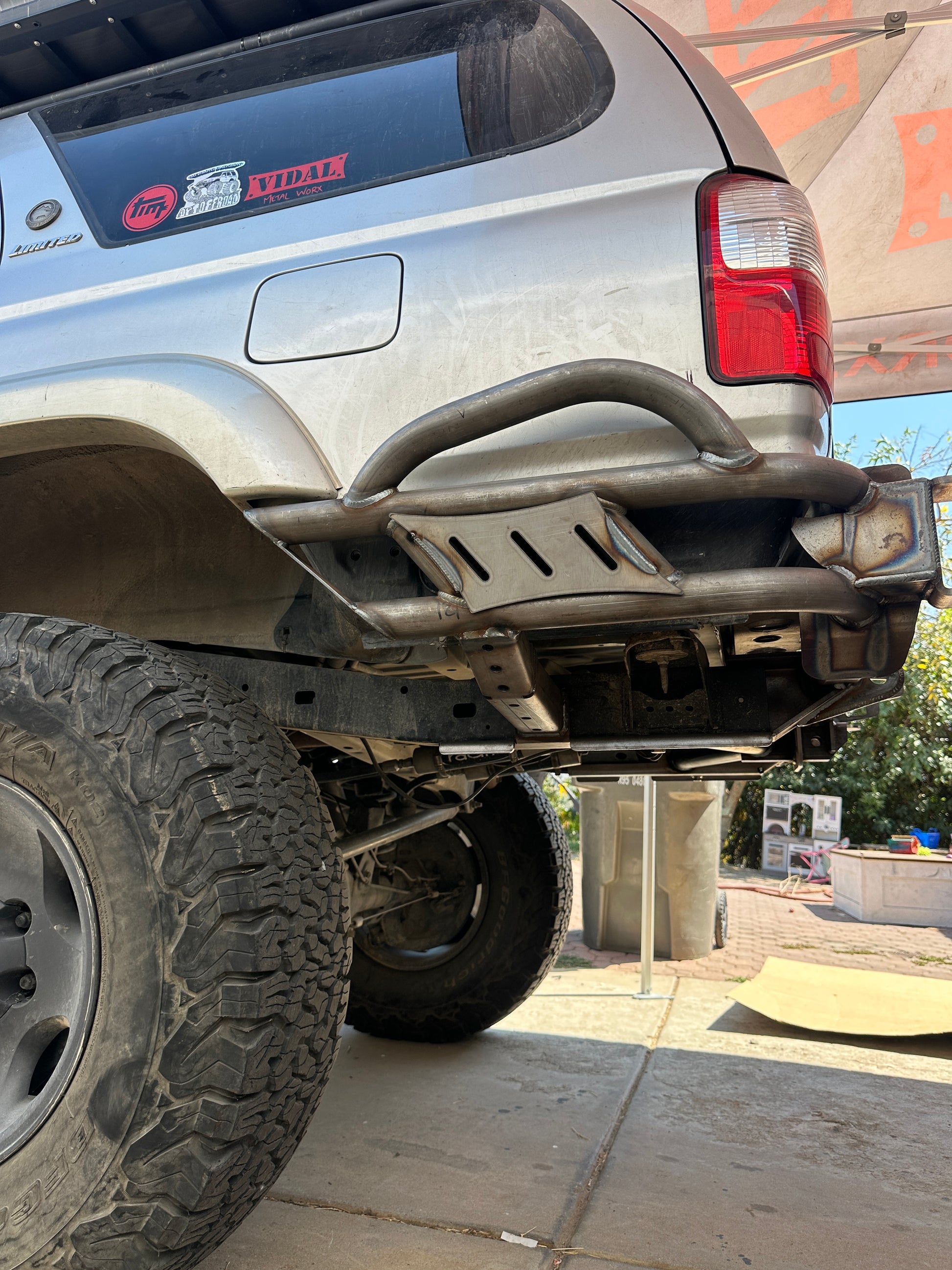

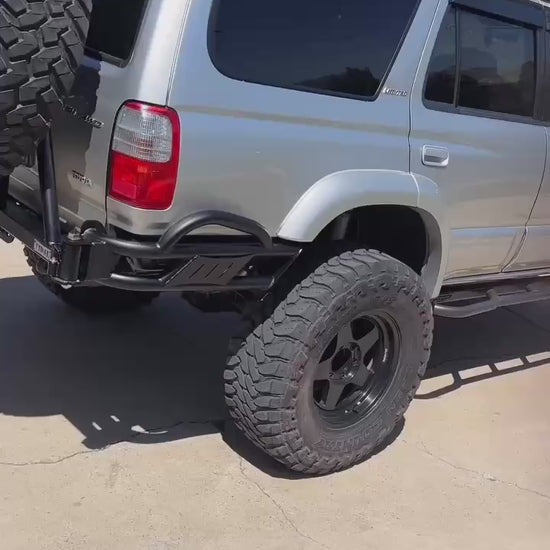

  • Quarter Panel Hoops
  • Hitch Receiver Tube - Disclaimer: Towing receiver tube does not have a tow rating. Bumper is designed for off-road use only.
  • Welded and ready for you to paint

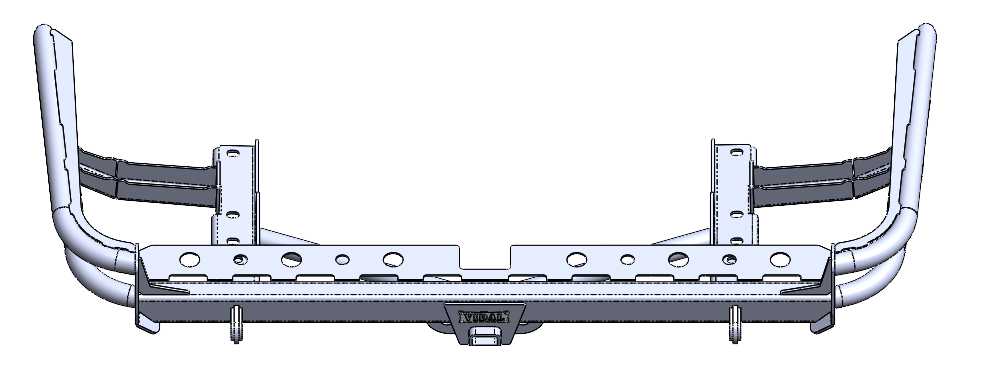

Specs:

  • Side wings and panel hoops - 1.75" DOM Round Tubing
  • Mounting Bracket to frame - 1/4" plate
  • Main Support Square Tubing - 2x3" 3/16" Tubing

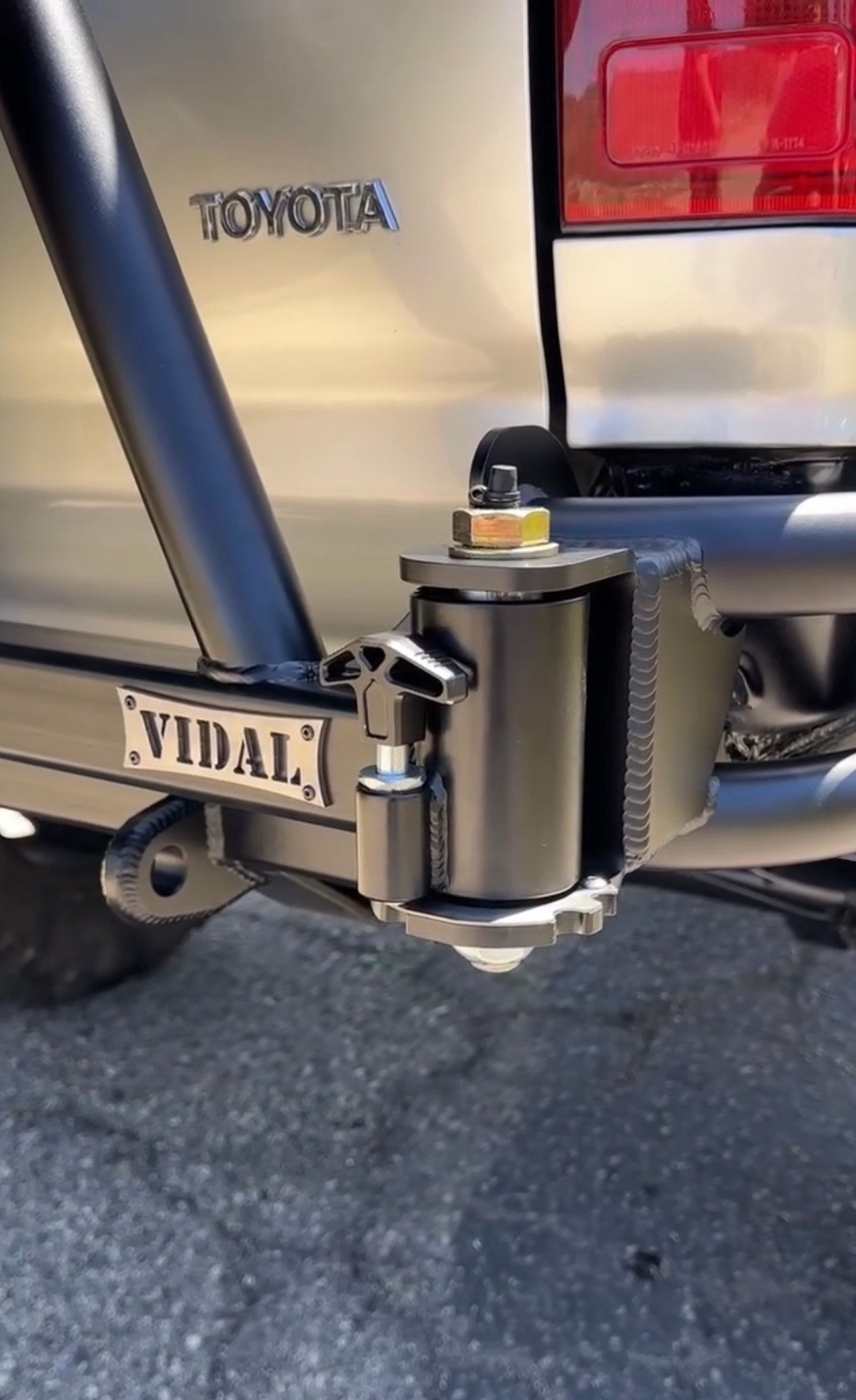

  • Ball Bearing Swing out Hinges.
  • Clevis Mounts **INCLUDED On Every Bumper Order** - 3/4" steel
  • Hitch Receiver Tube **INCLUDED On Every Bumper Order**- Disclaimer: Towing receiver does not have a tow rating. Bumper is designed for off-road use only.
  • Weight: no swingout ~ 105lb
           With Single Swingout ~125lbs + other options add a few more  pounds.
Rear Body Mounts!

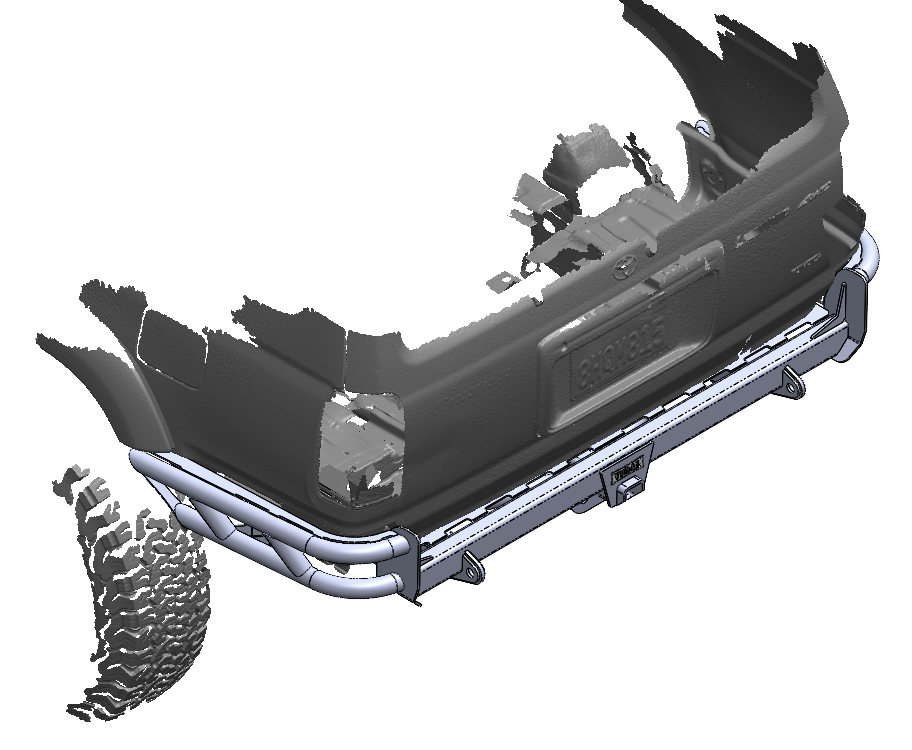

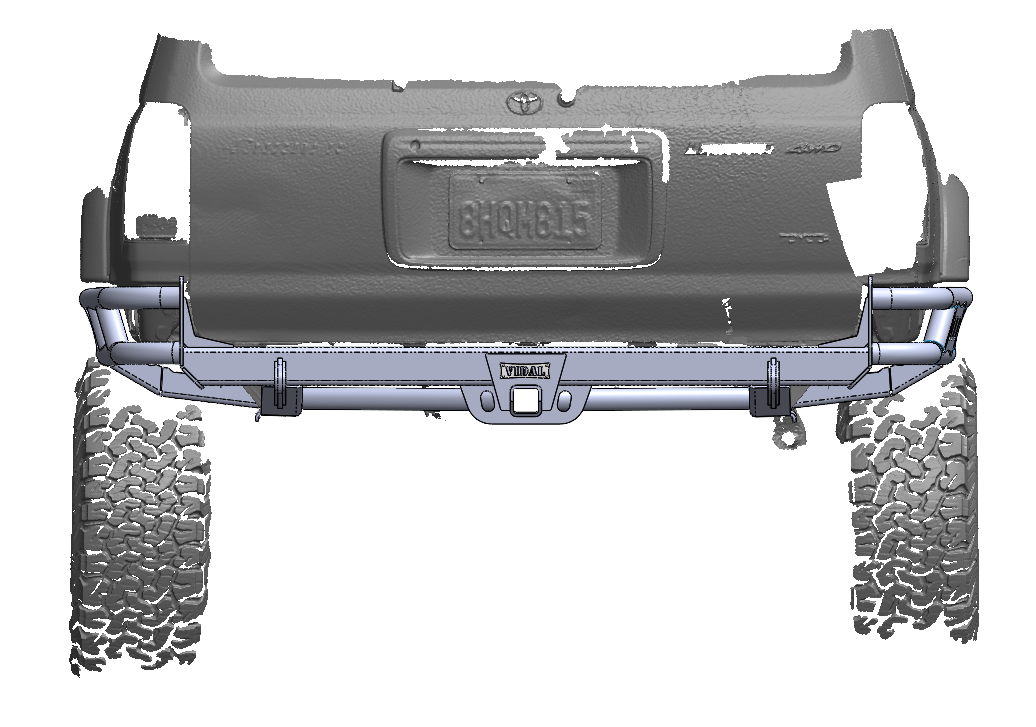

Please be aware that 3rd Generation 4Runners may have variations in rear main frame measurements due to factors such as vehicle age, previous accidents, or manufacturing differences. VIDAL METAL WORX accounts for these variations when designing the F-14D Rear Bumper to help ensure proper fitment.

Installing an aftermarket rear bumper may result in excessive flex due to the limited support provided by the factory rear body mounts. To improve stability and reduce movement, VIDAL METAL WORX requires replacing the OEM rear body mounts with Energy Suspension Universal Mounts to help provide a more secure installation.


    Processing Time

    Orders are processed in the order they are received. Lead times are estimates and may vary depending on workload. Delays may occur during high-volume periods, holidays, or due to unforeseen circumstances

    *SHIPPING: The F-14D Rear Bumper ships to your designated FedEx Freight terminal for pickup. Please click the link below to locate the FedEx Freight facility nearest you.

    https://www.fedexfreight.fedex.com/locations.jsp









    Disclaimer: Towing receiver tube does not have a tow rating. Bumper is designed for off-road use only.
