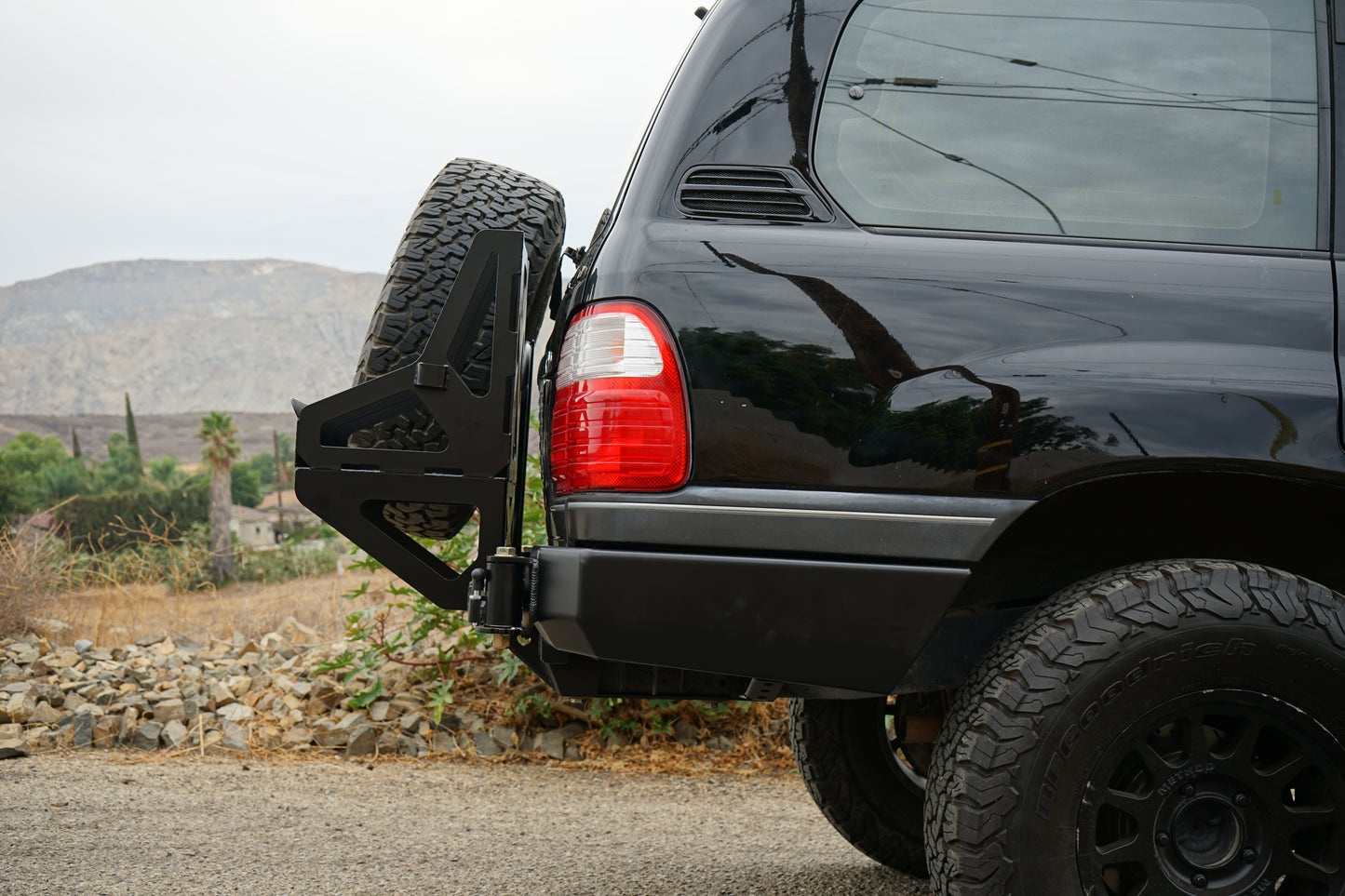

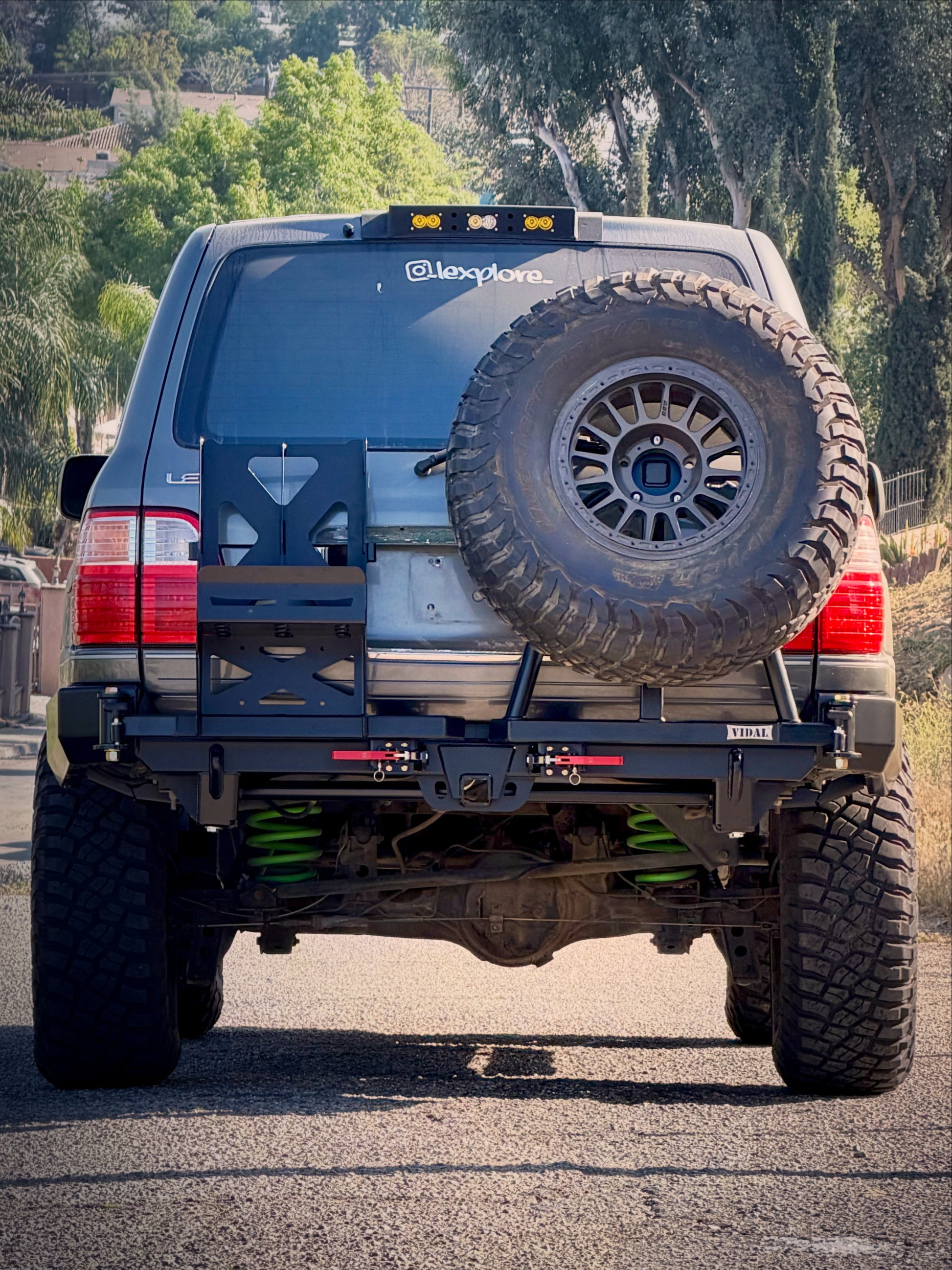

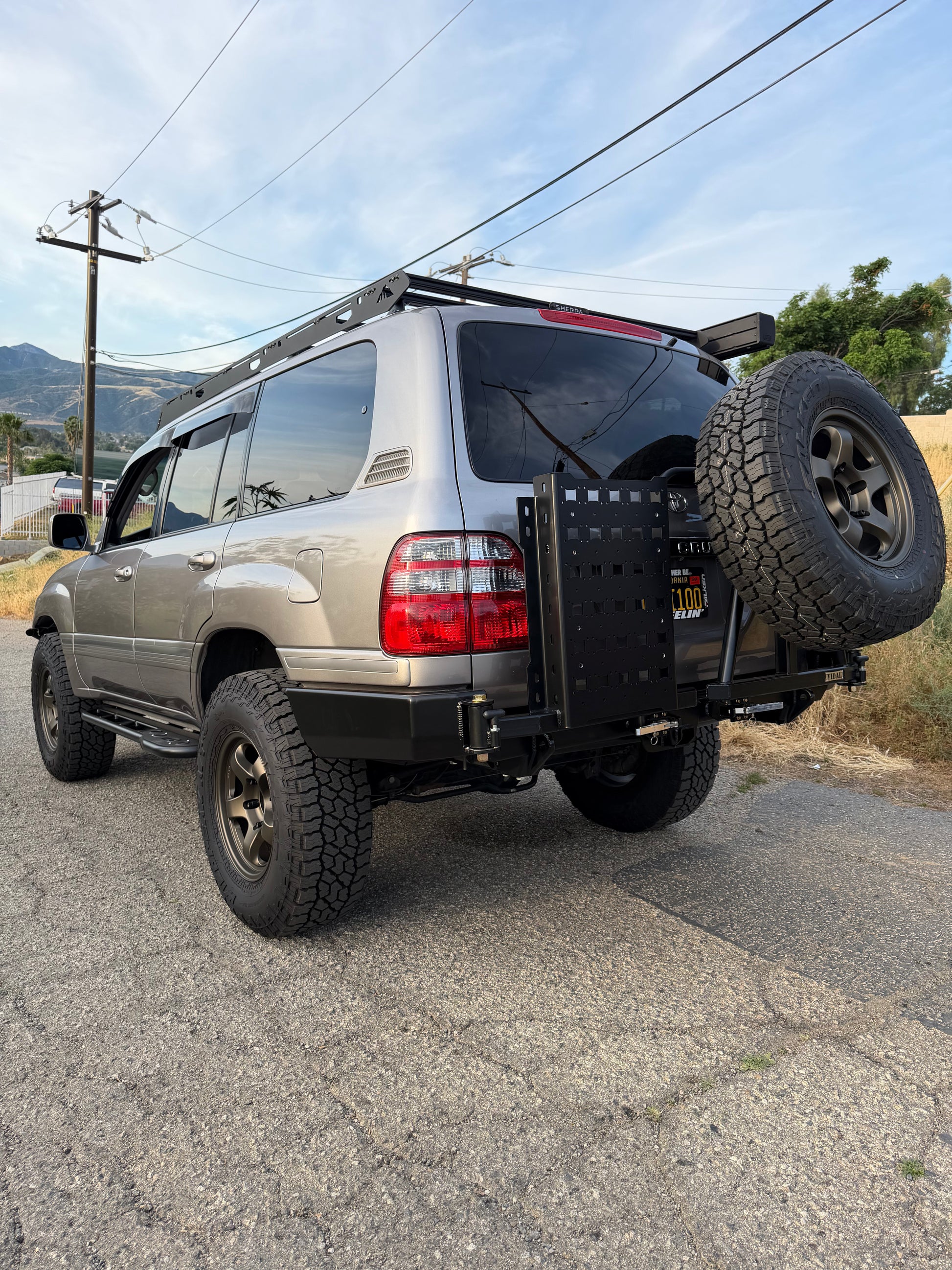

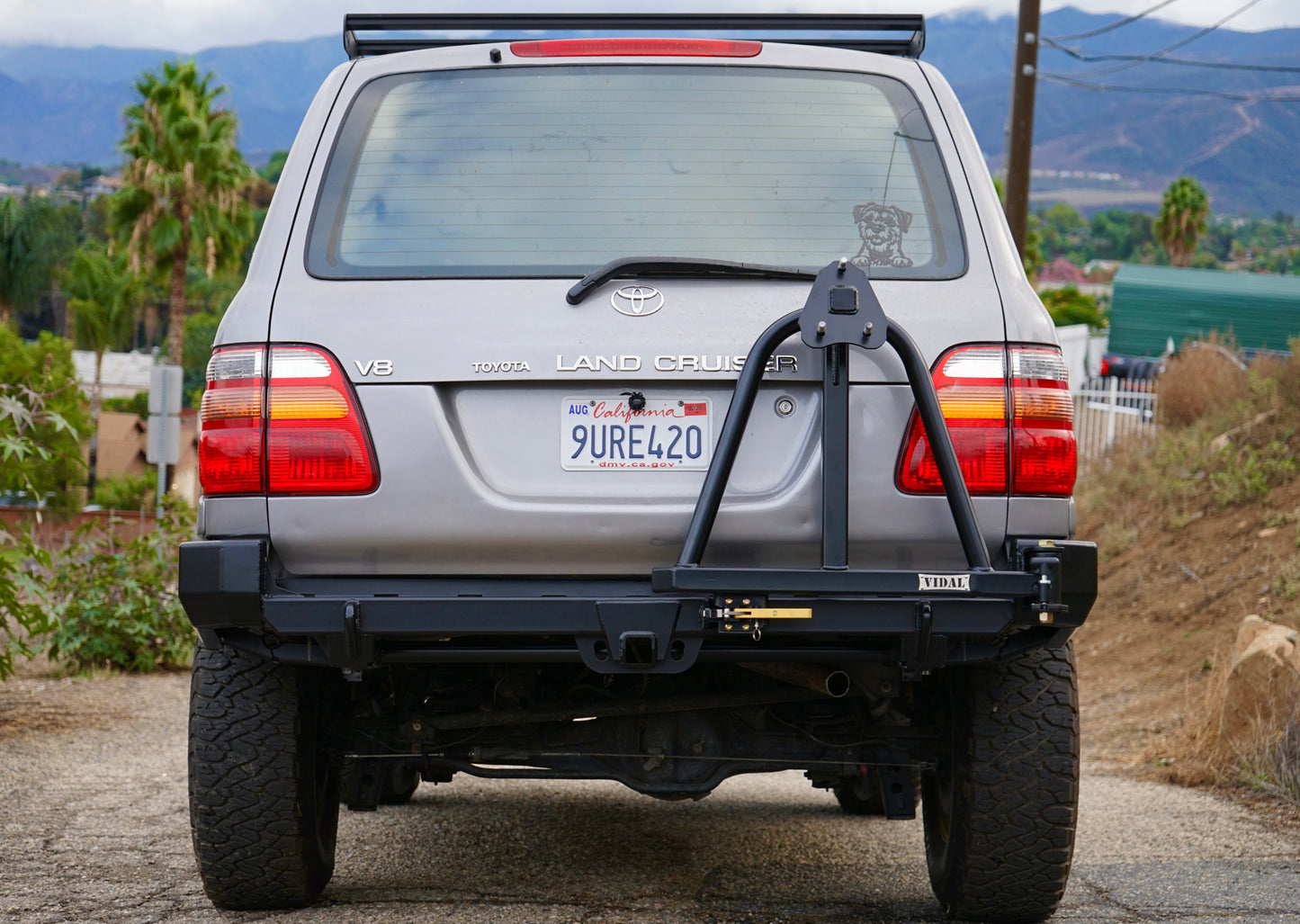

NightHawk 100 Rear Bumper

NightHawk 100 Rear Bumper

$1,399.00 USD
$1,399.00 USD
Sale Sold out
  • CURRENT LEAD TIME: 8-10 WEEKS

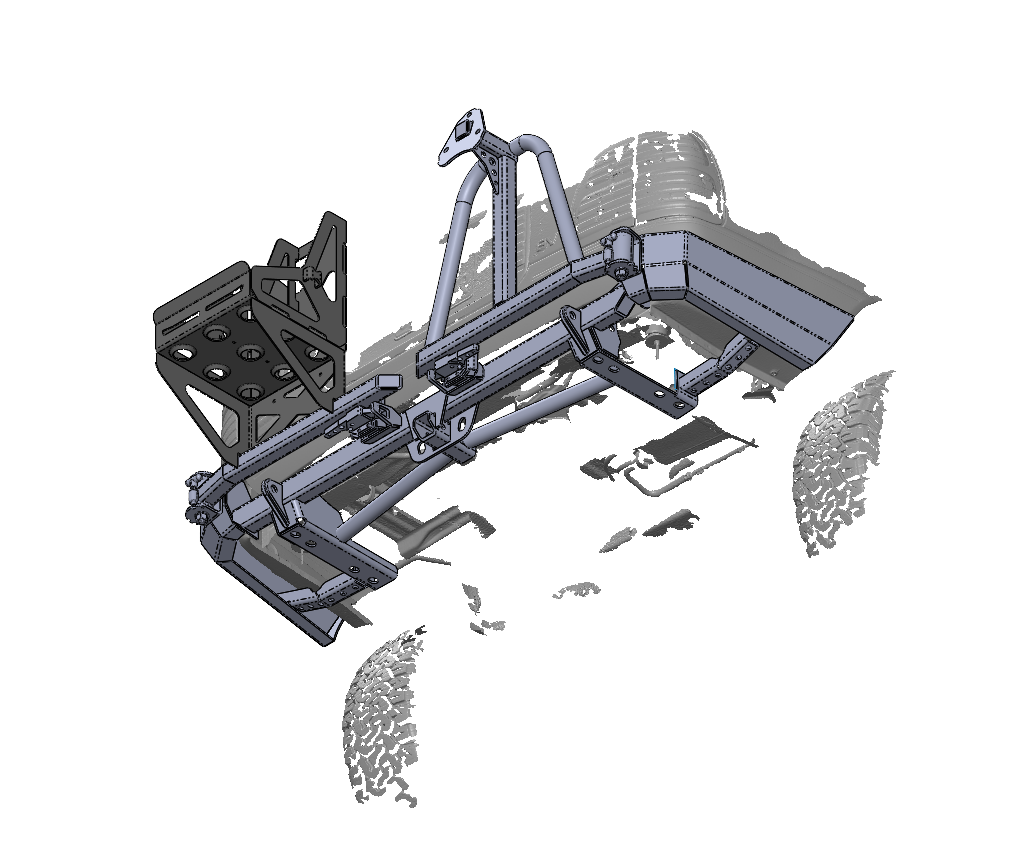

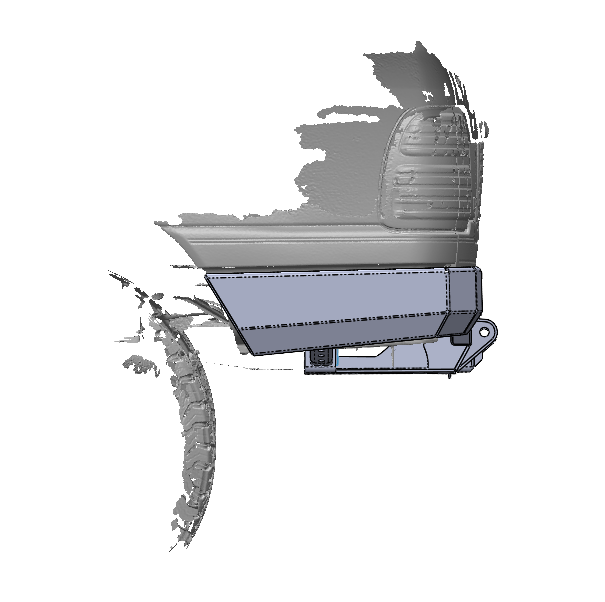

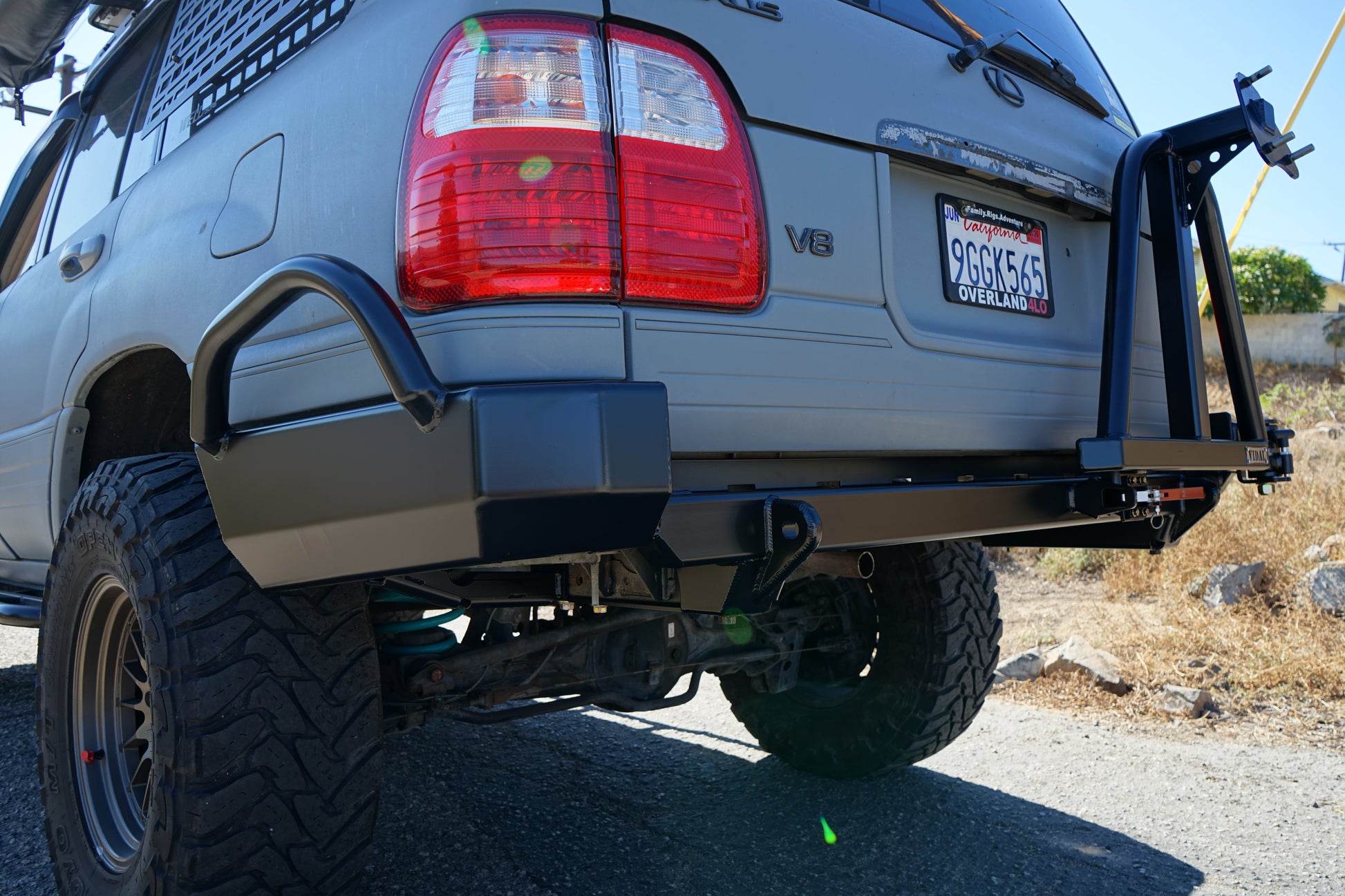

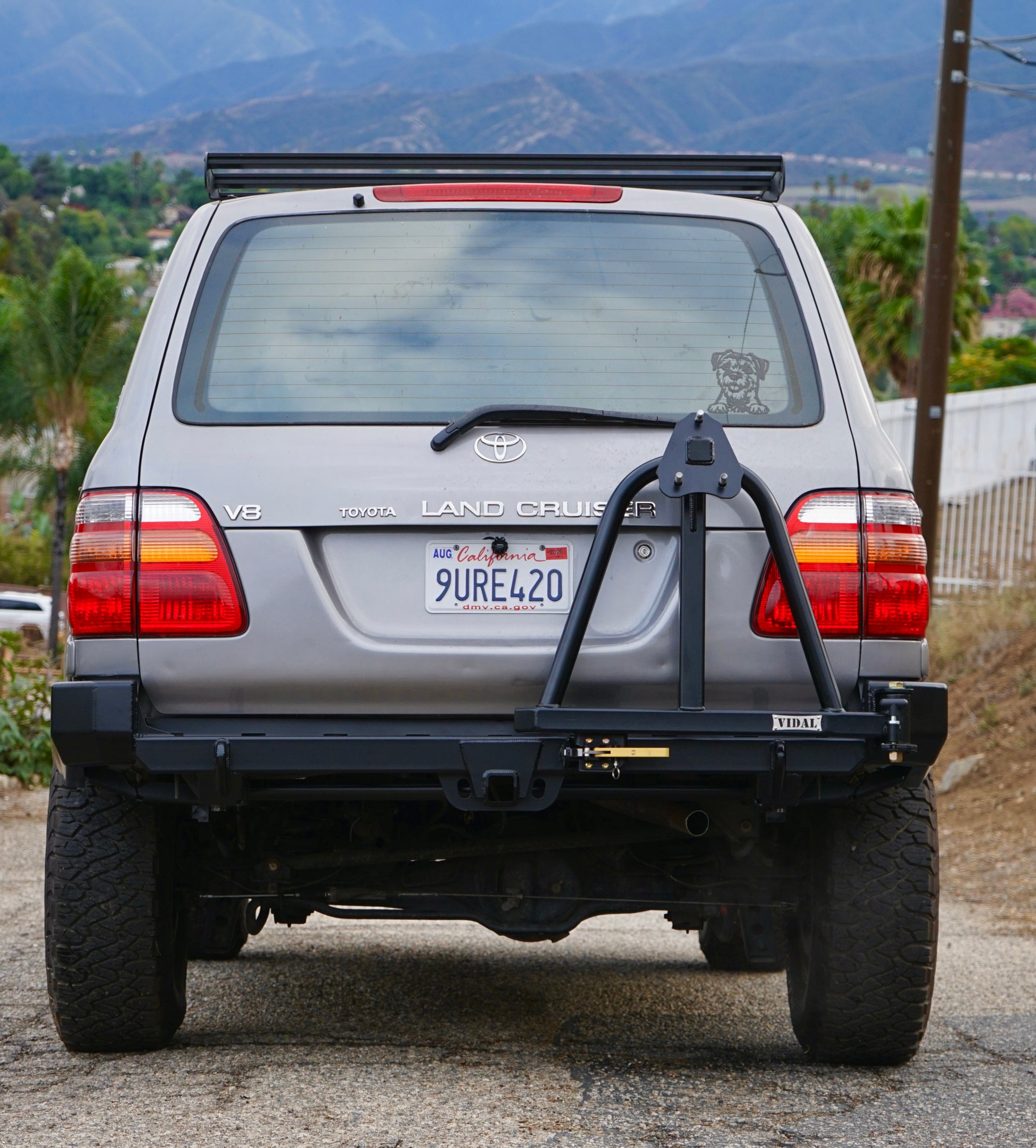

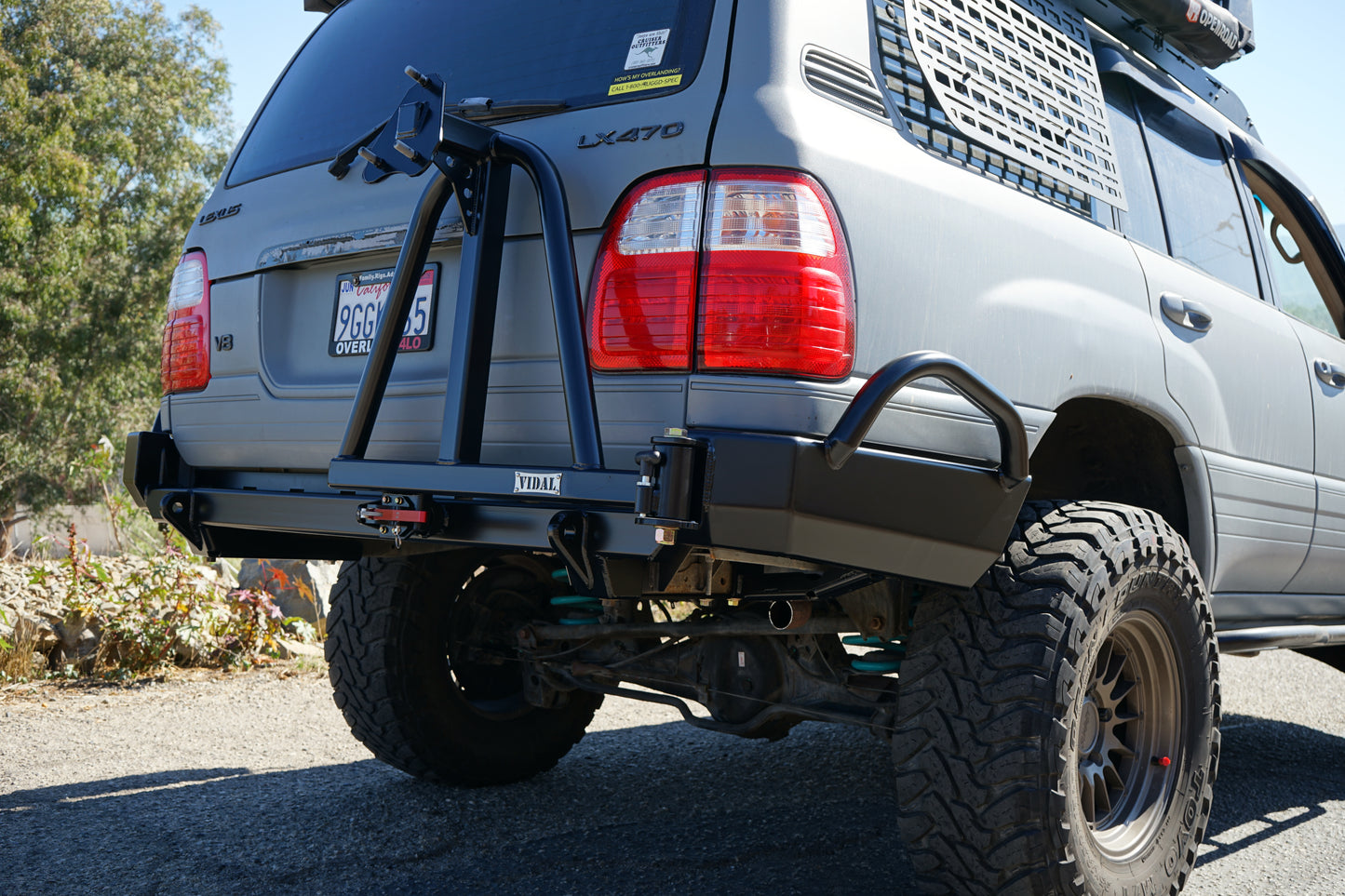

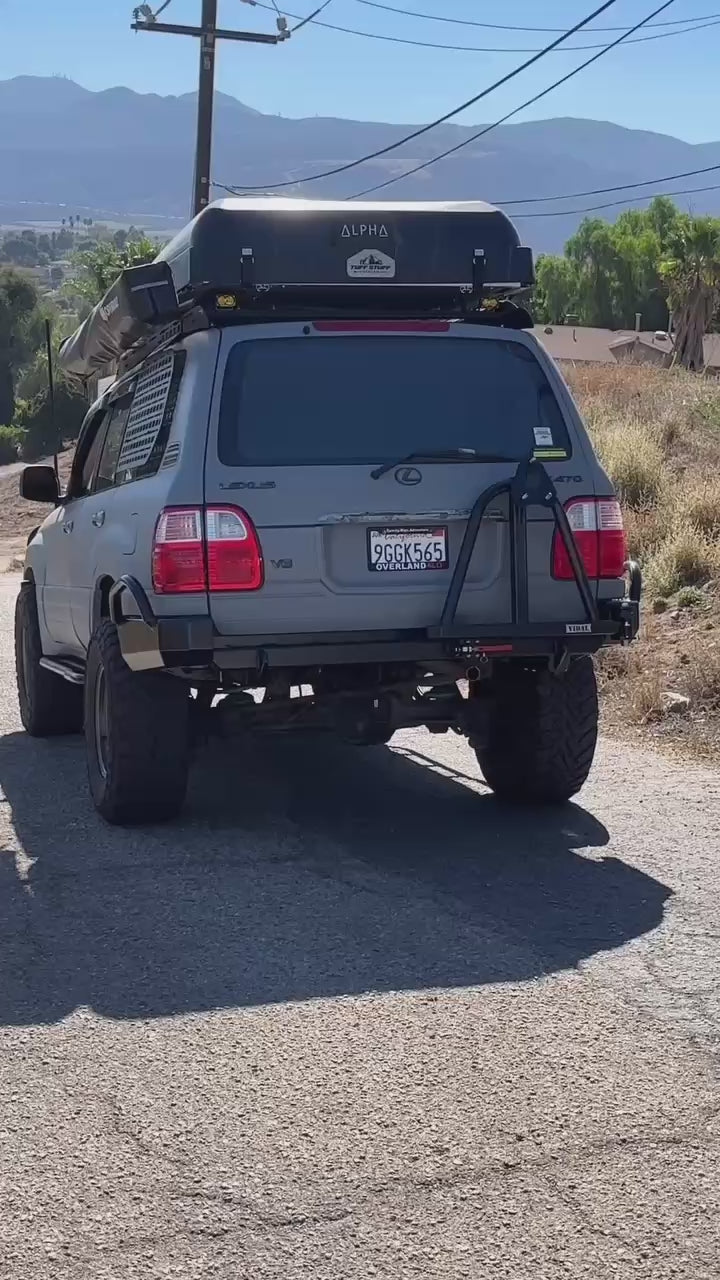

Introducing the NIGHTHAWK 100 rear bumper. Cutting and removal of rear crossmember is required for installation. Rear muffler may need to be cut and removed for better clearance. All of our bumpers are proudly made in SoCal U.S.A.
Customize your bumper

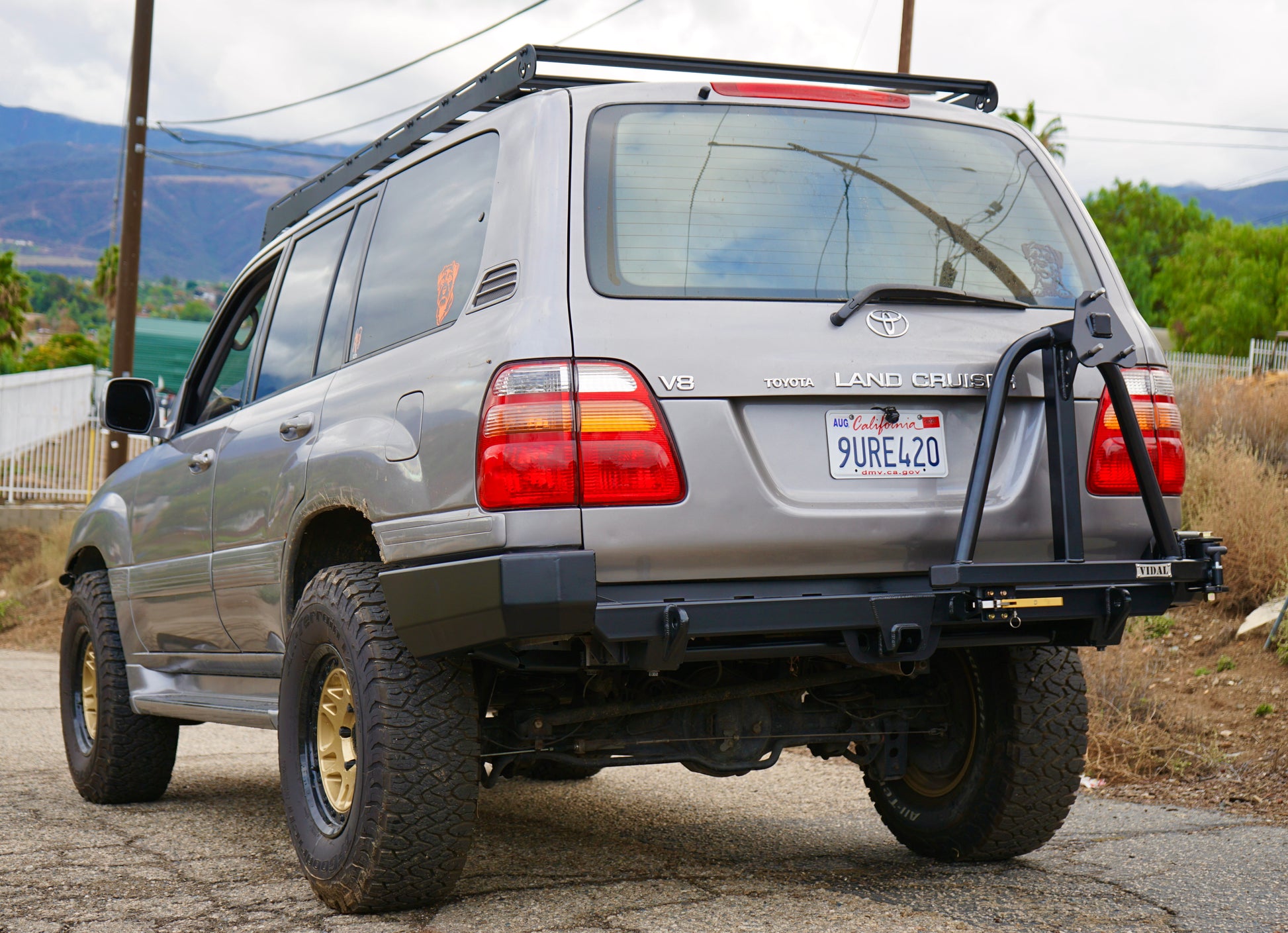

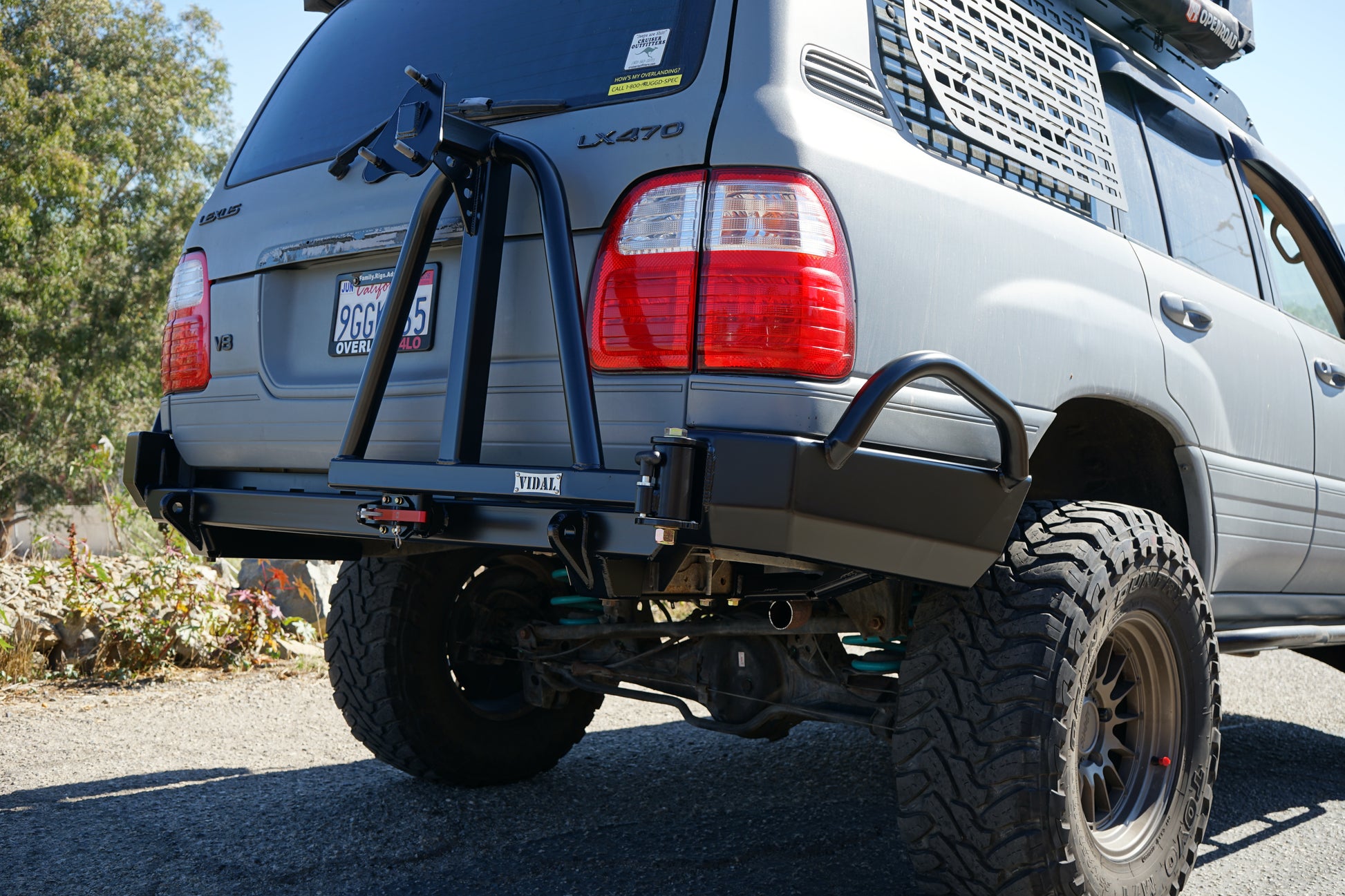

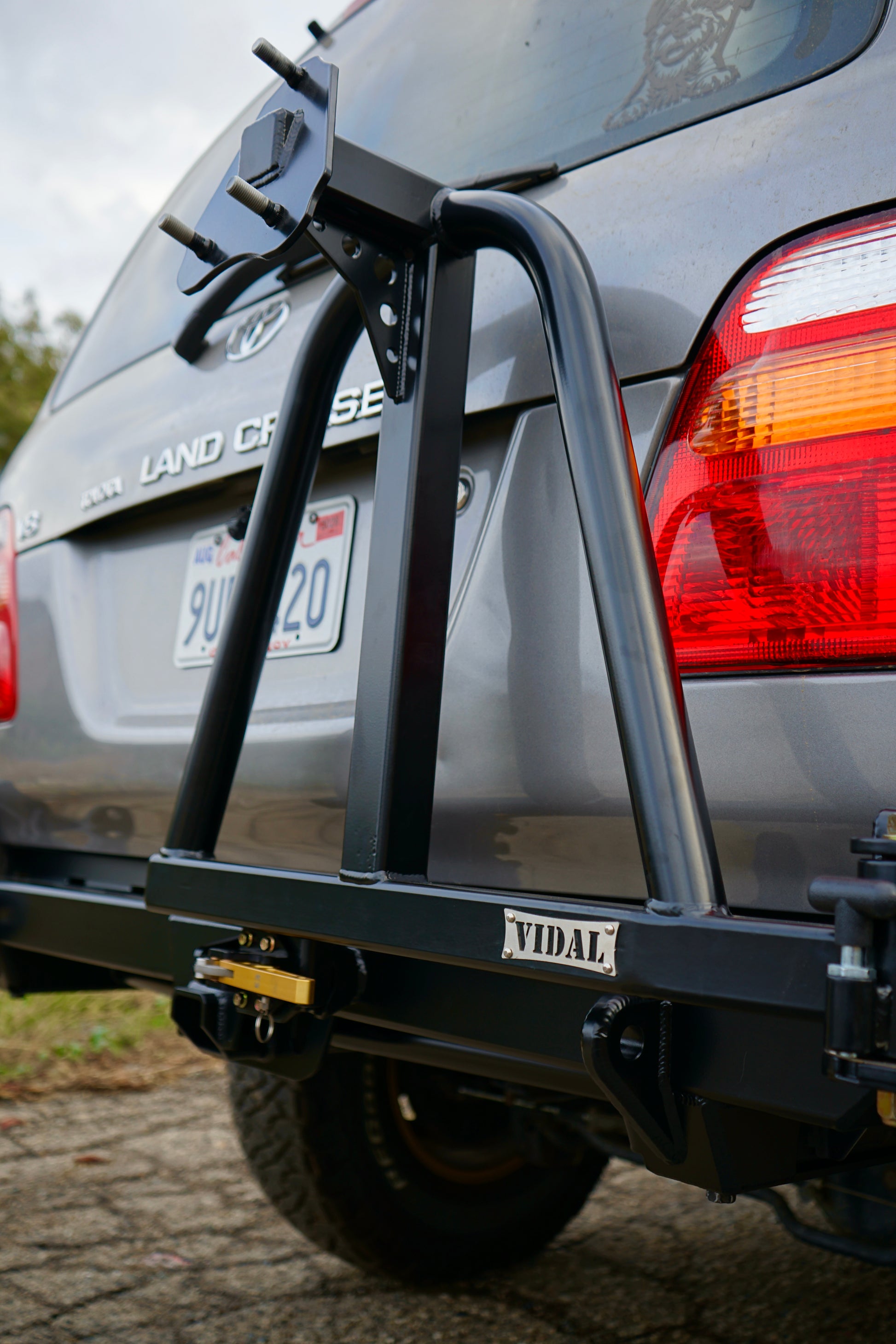

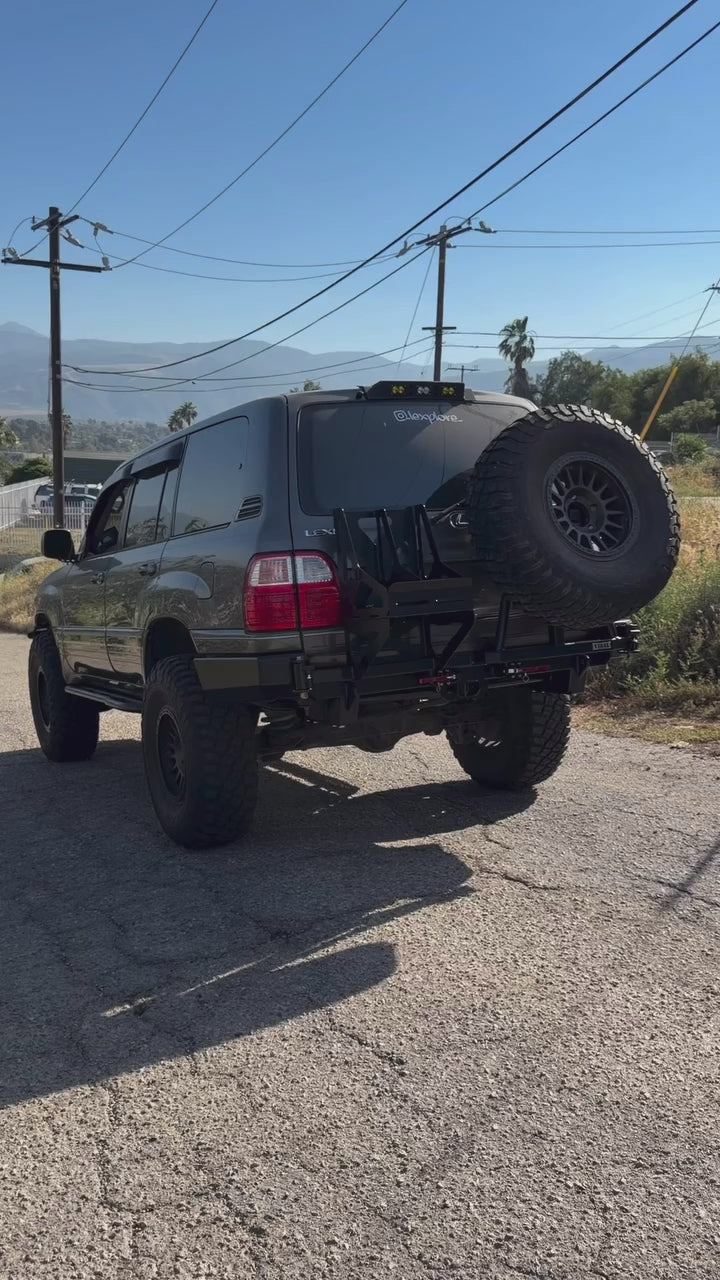

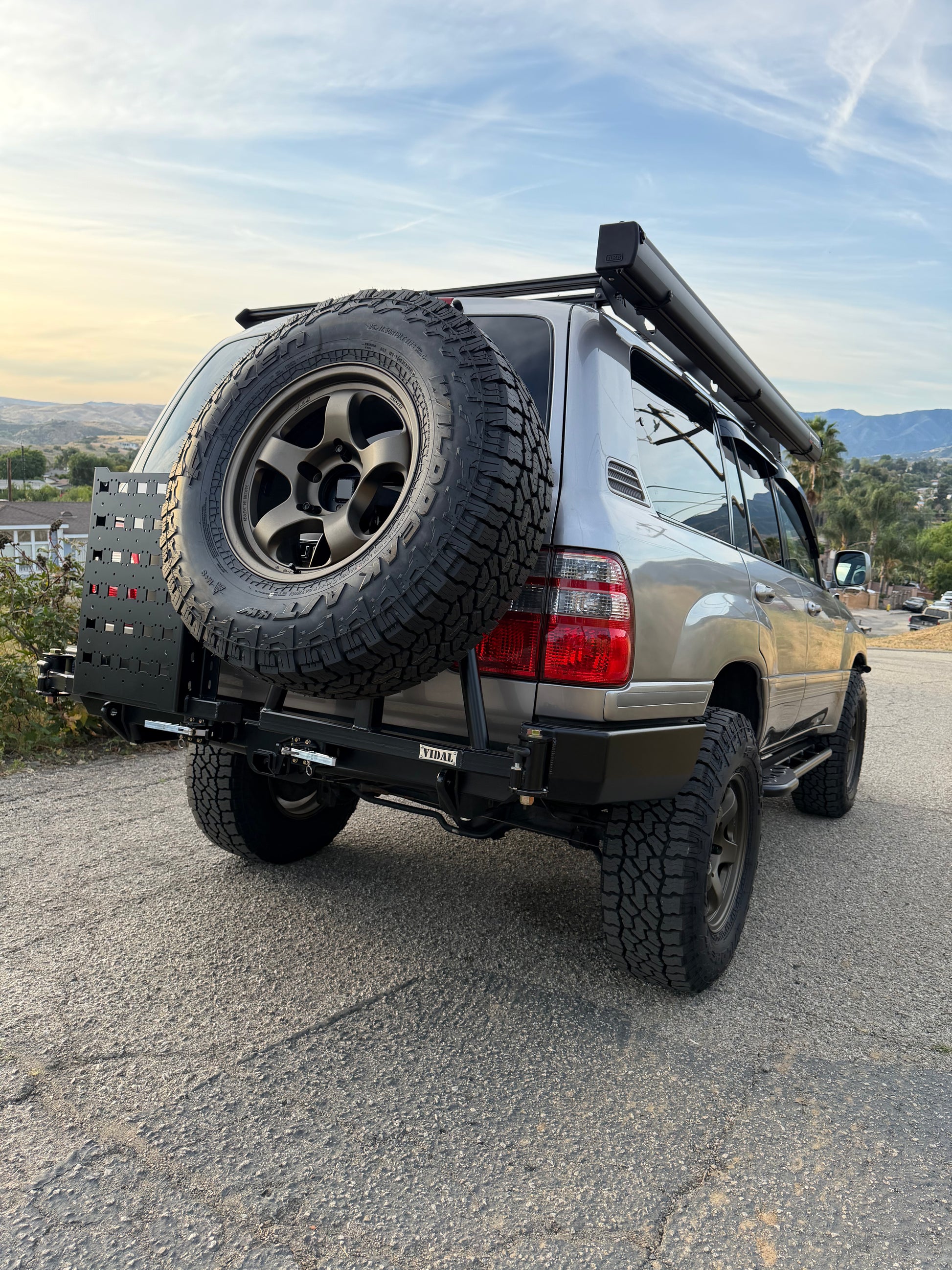

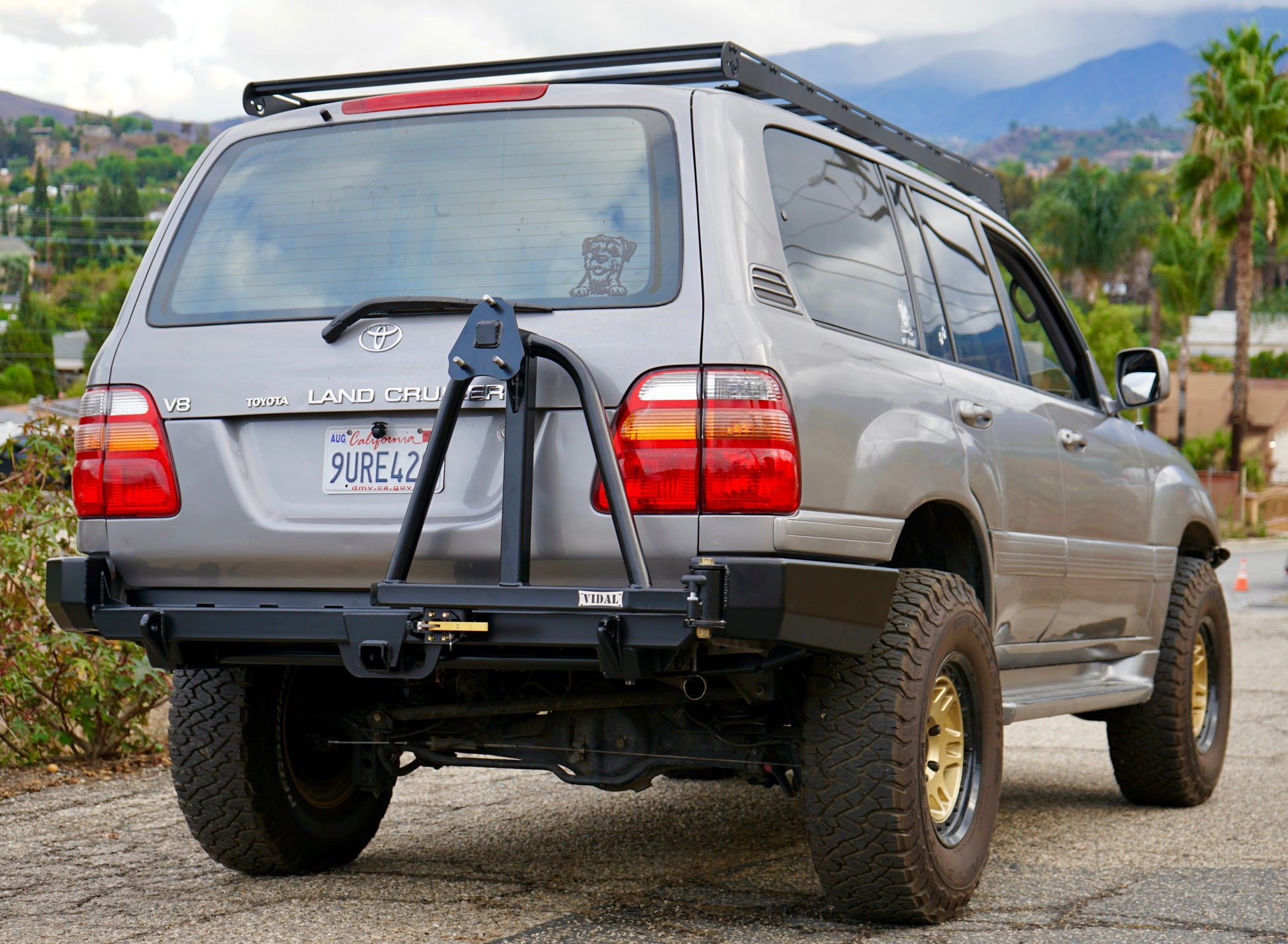

  • Single Swing Out - Half Arm
  • Single Swing out - Full Arm

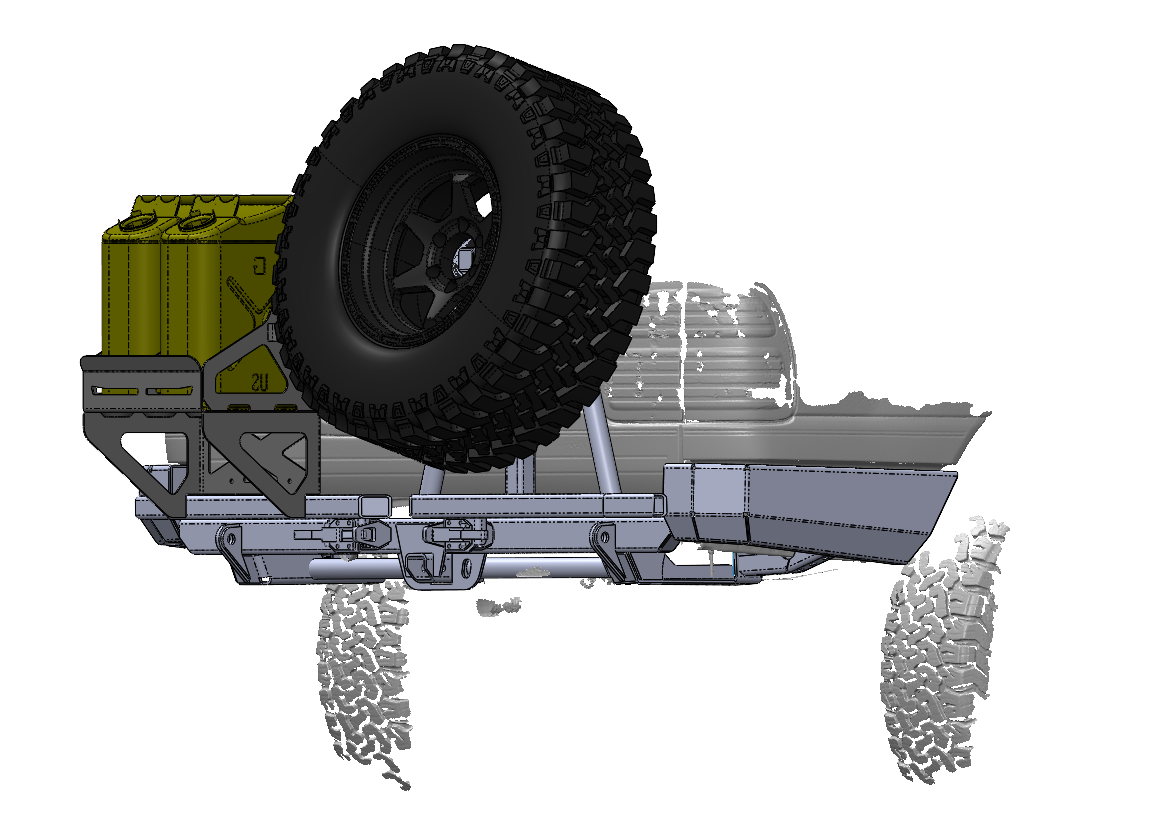

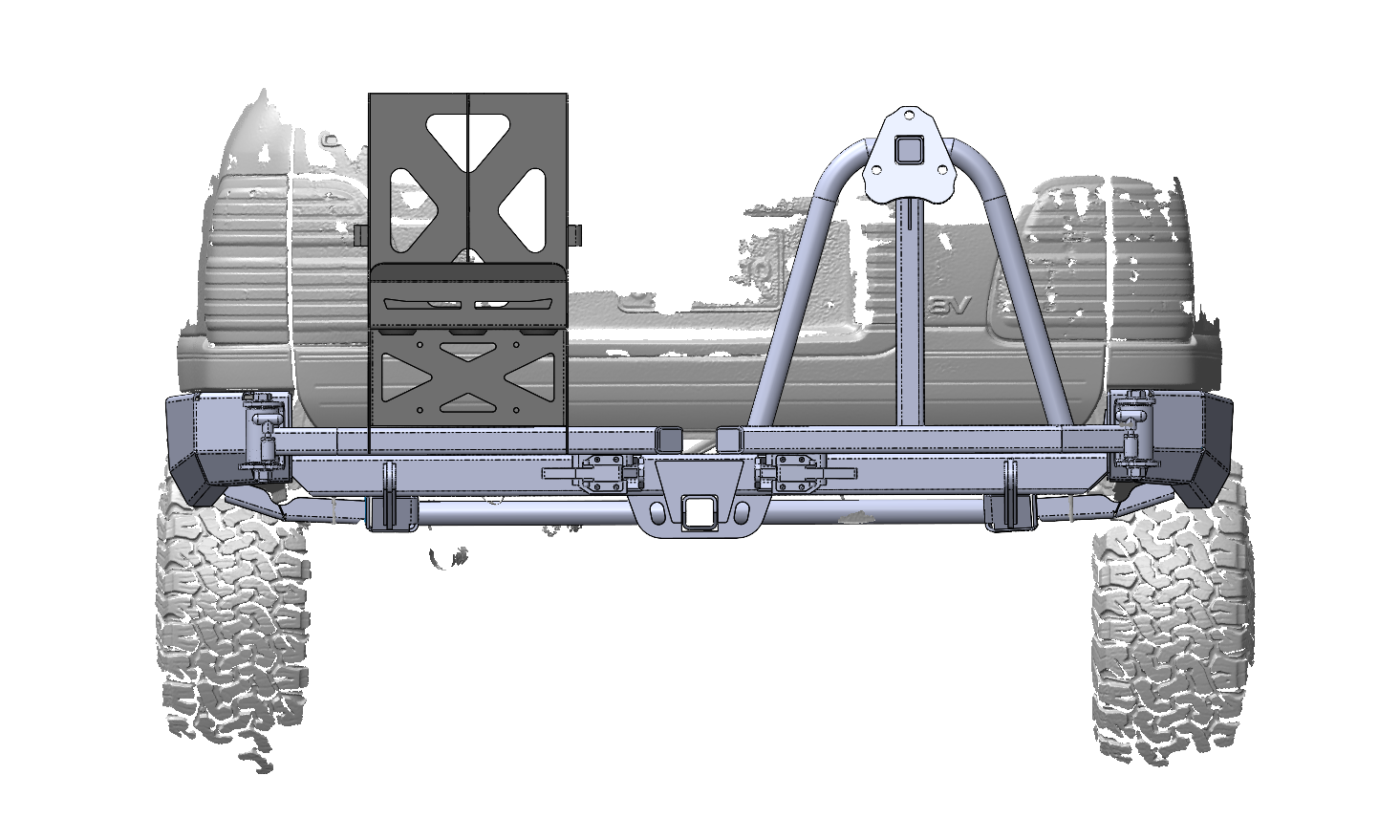

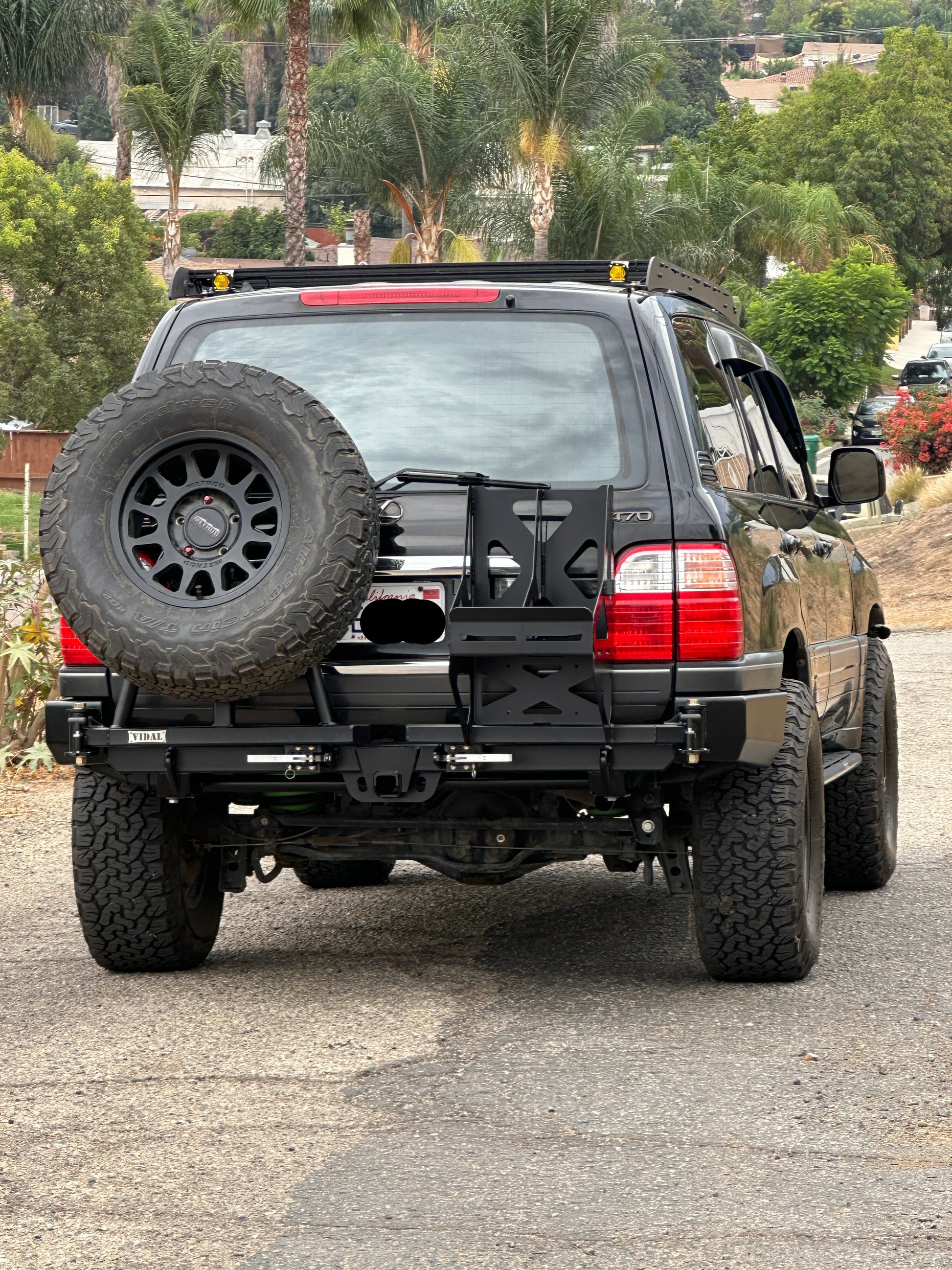

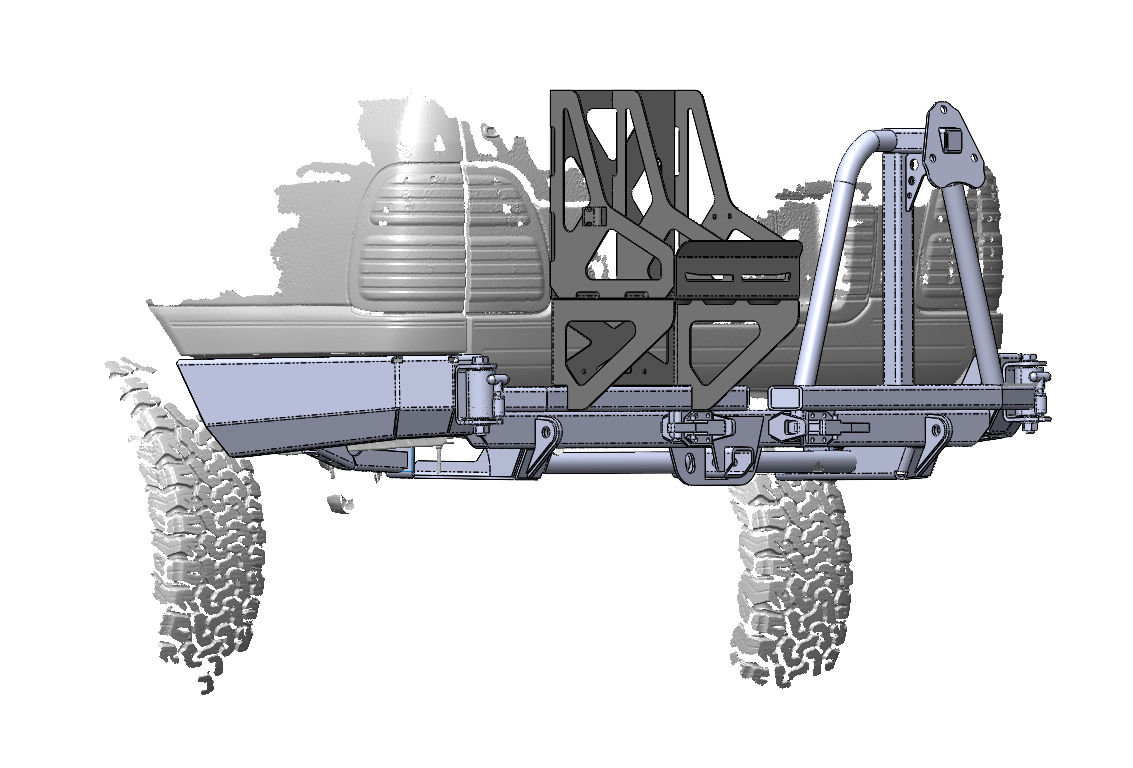

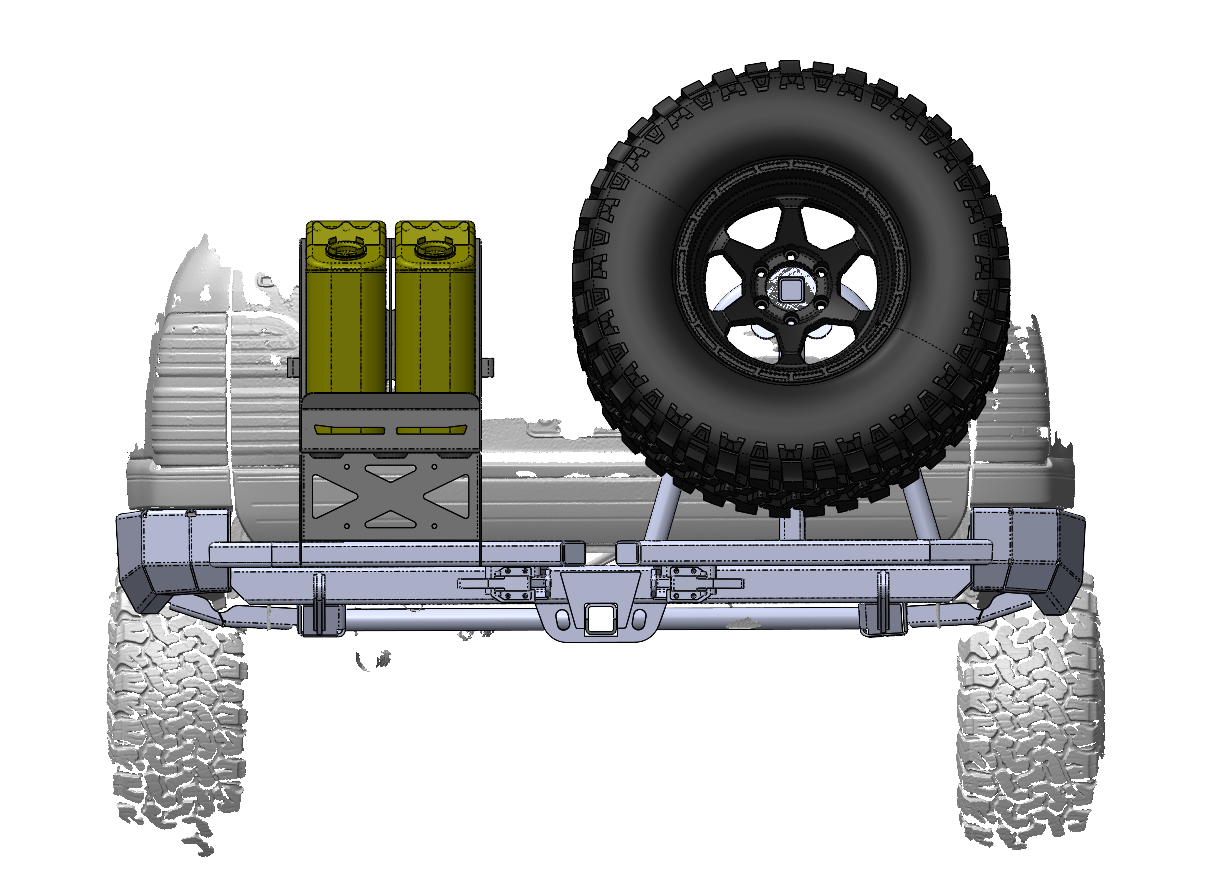

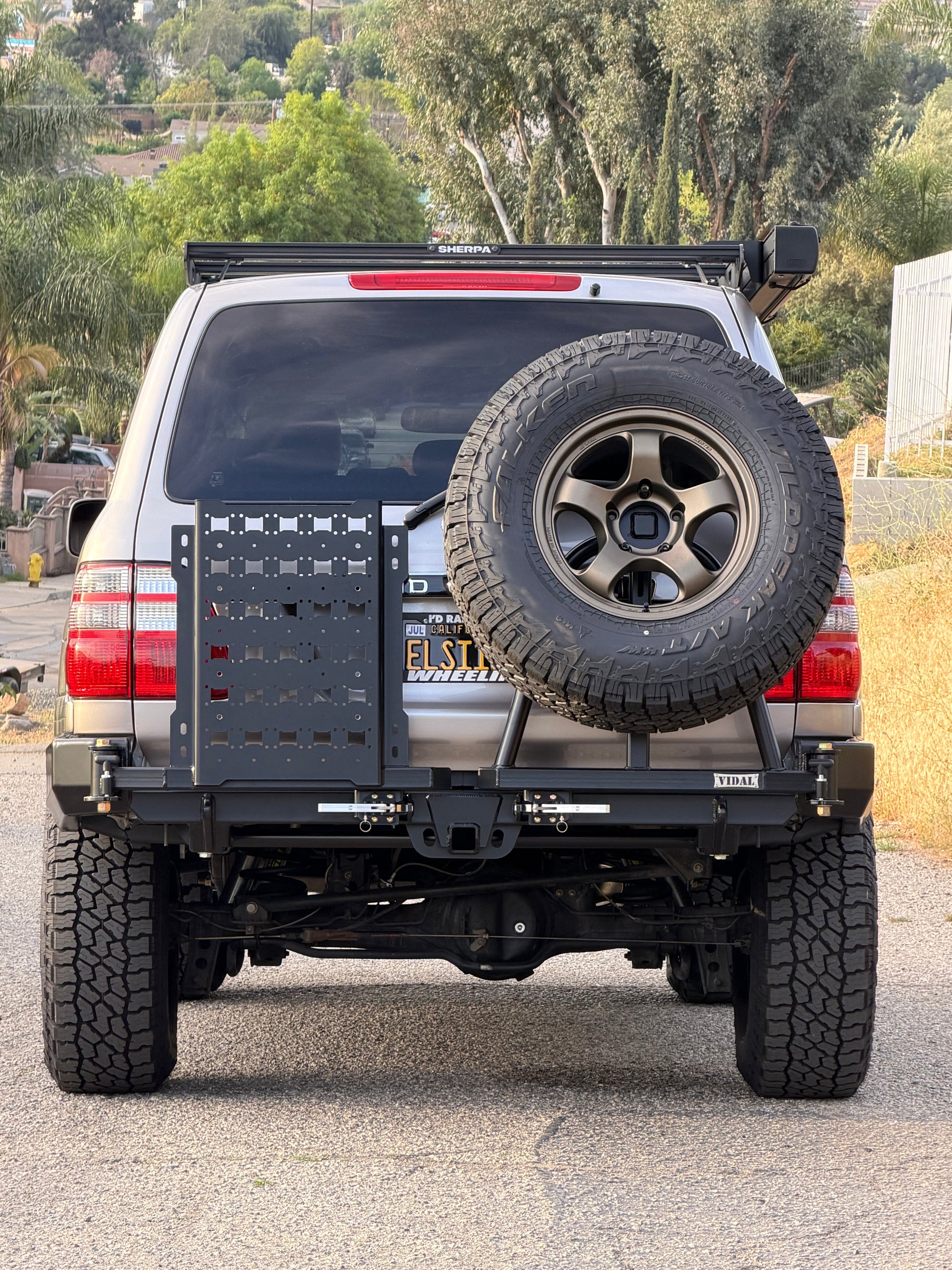

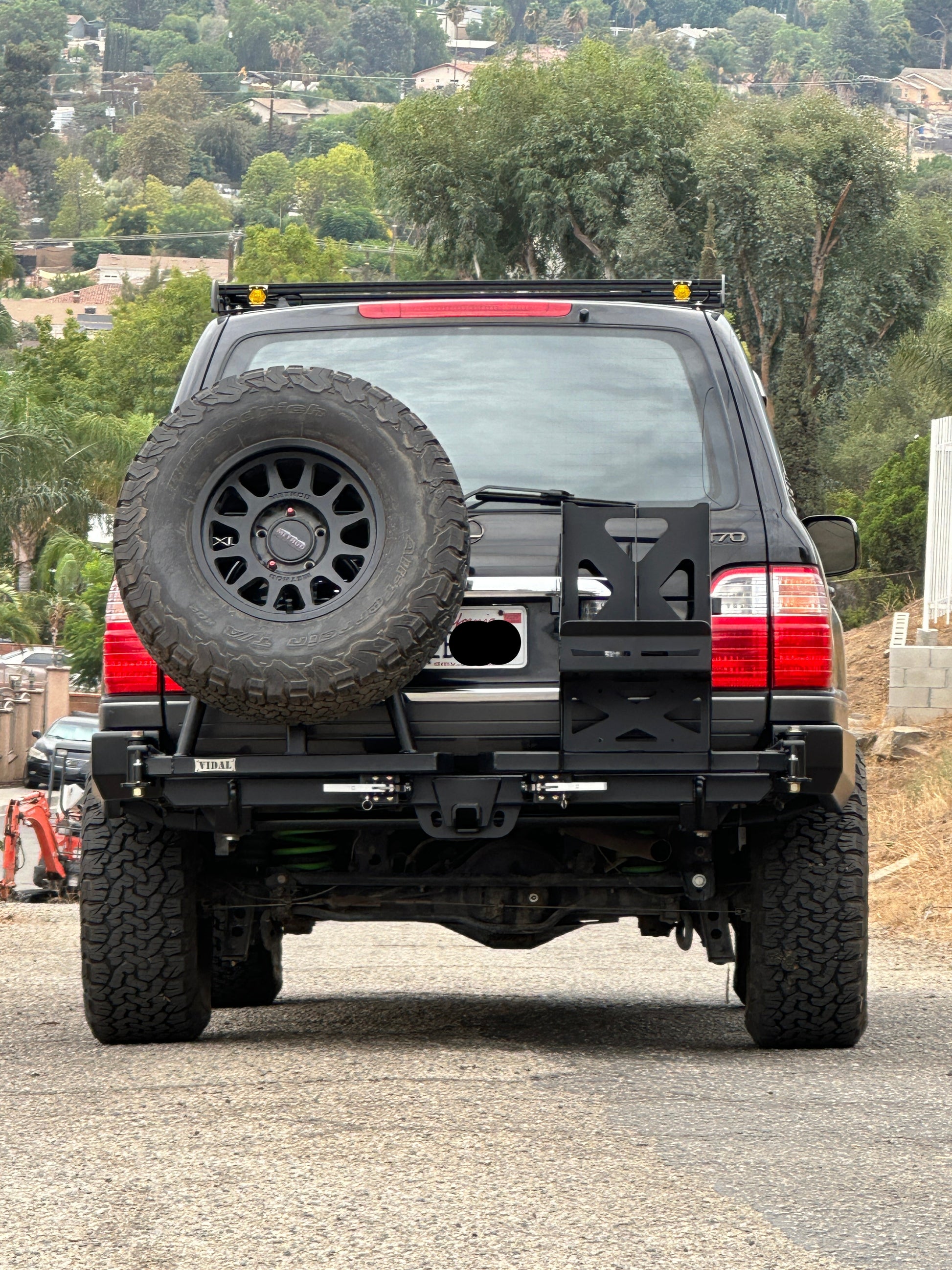

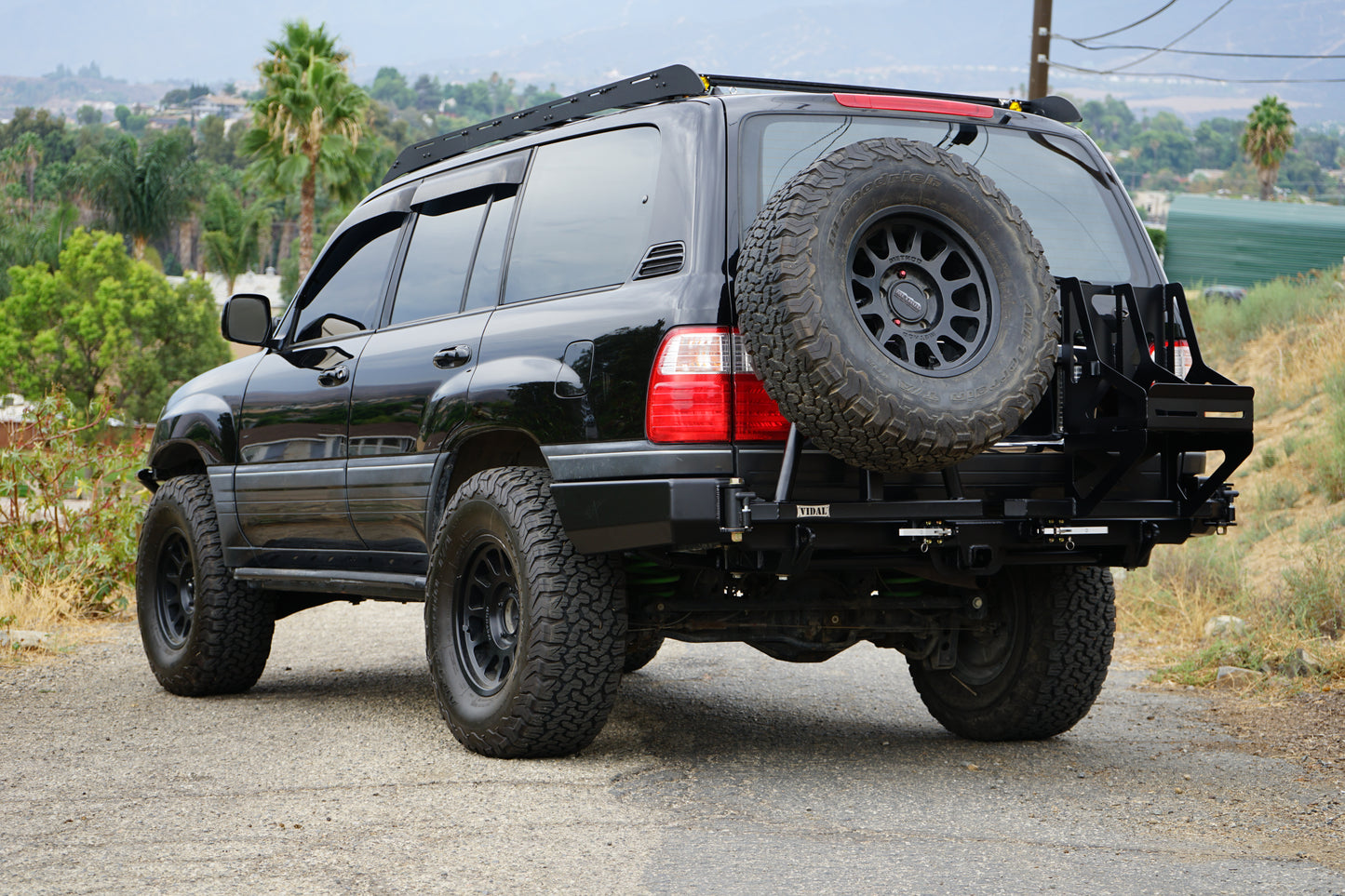

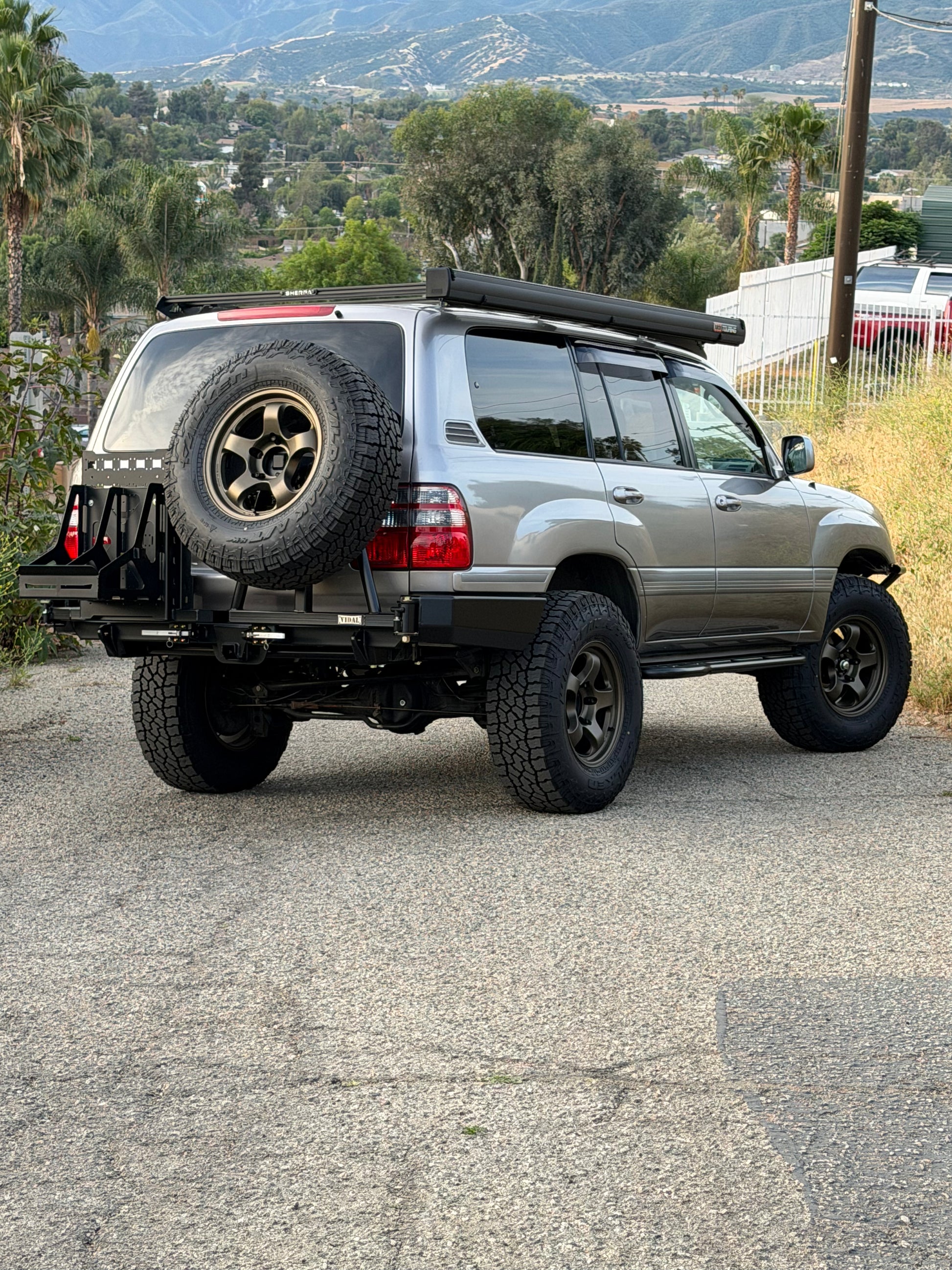

  • Dual Swing out - Single/Dual Jerry Can Holder

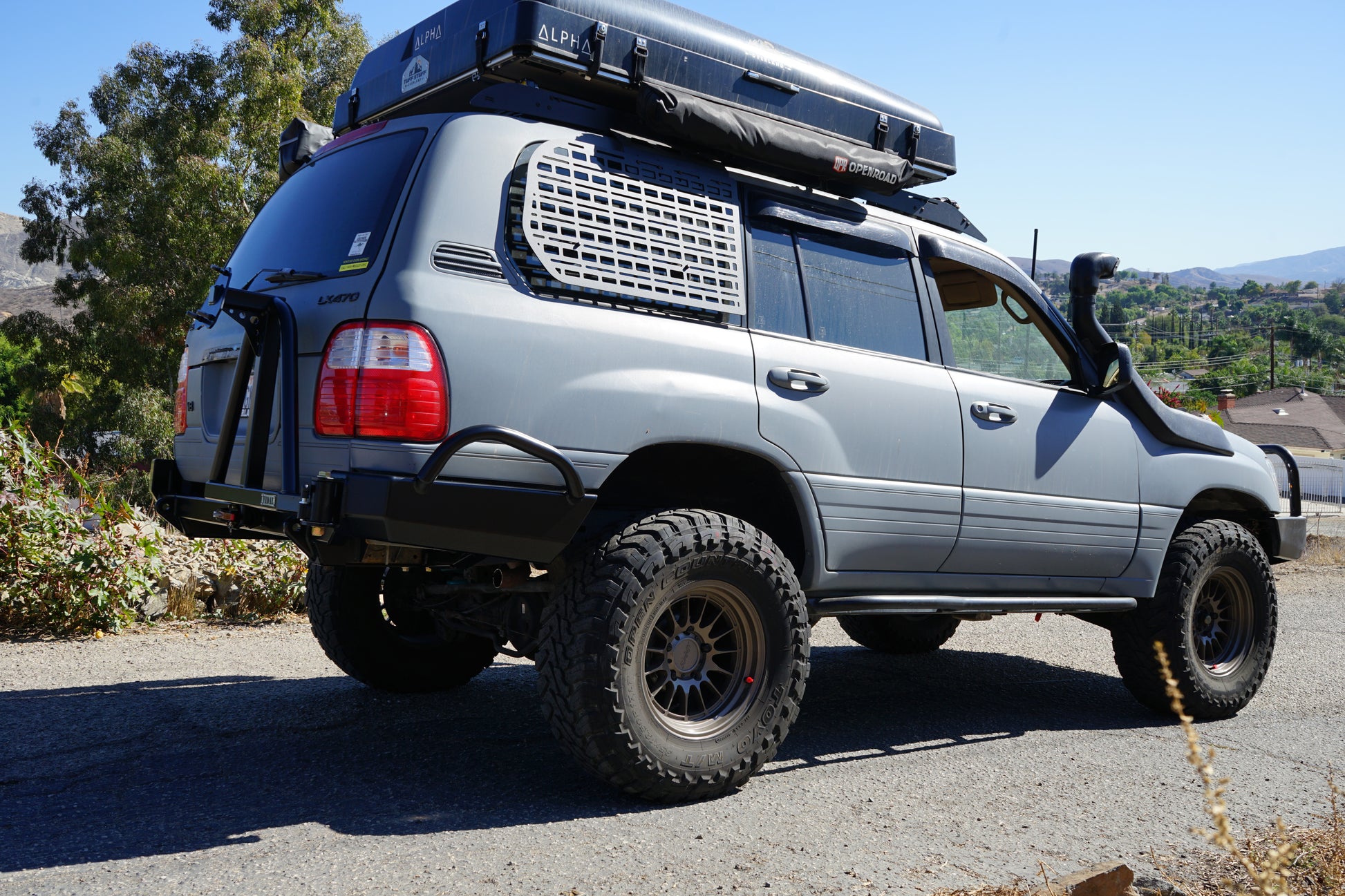

  • Quarter Panel Hoops

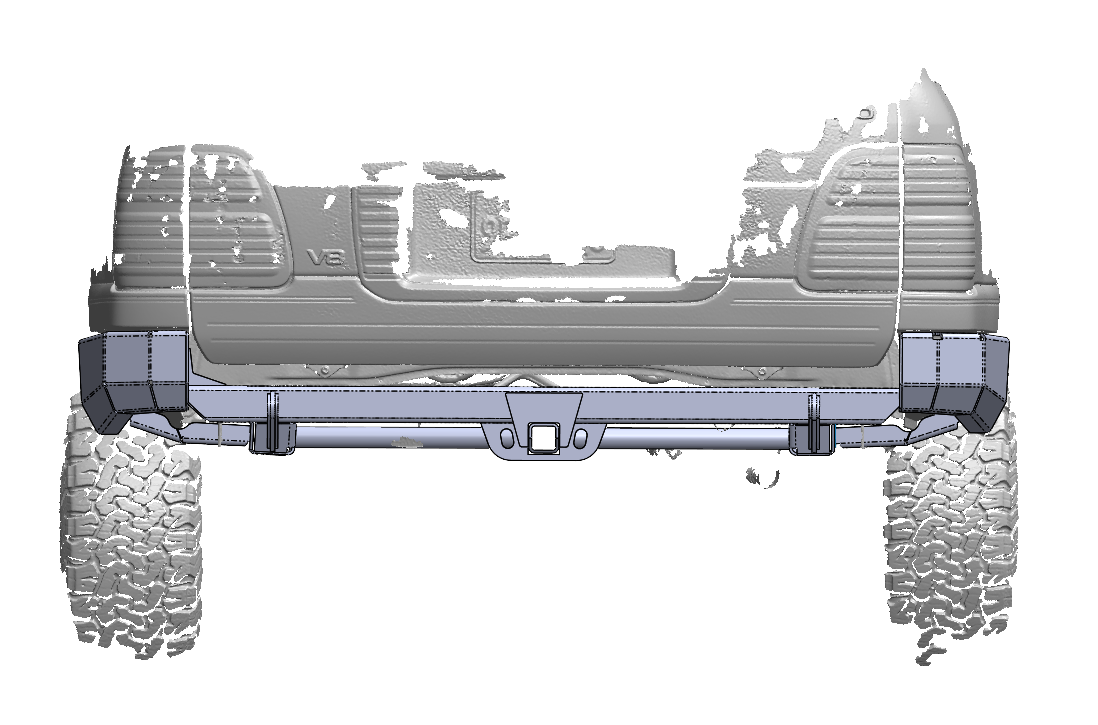

  • Hitch Receiver Tube - Disclaimer: Towing receiver does not have a tow rating. Bumper is designed for off-road use only.

Specs:

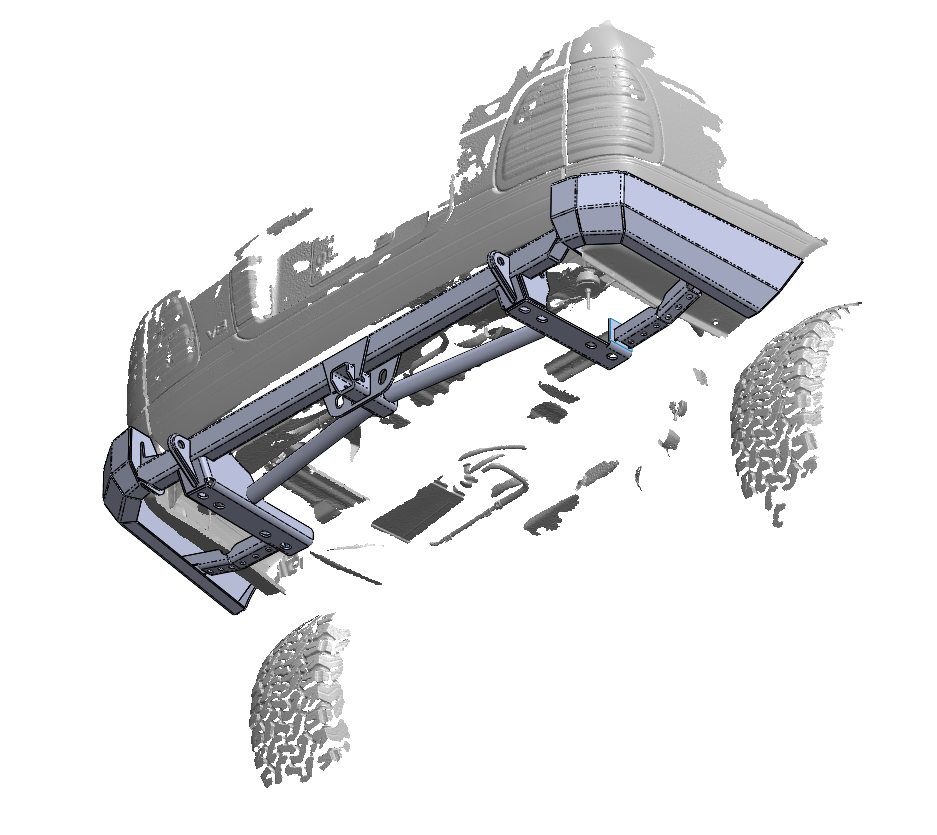

  • Side Panels - 3/16" HRP&O
  • Mounting Bracket to frame - 1/4" HRP&O
  • Side Lower Supports: 3/16" HRP&O
  • Main Support Tubing - 2x3" 3/16"  Rectangle Tubing
  • Swing out arms are built out of 2x2 3/16" tubing

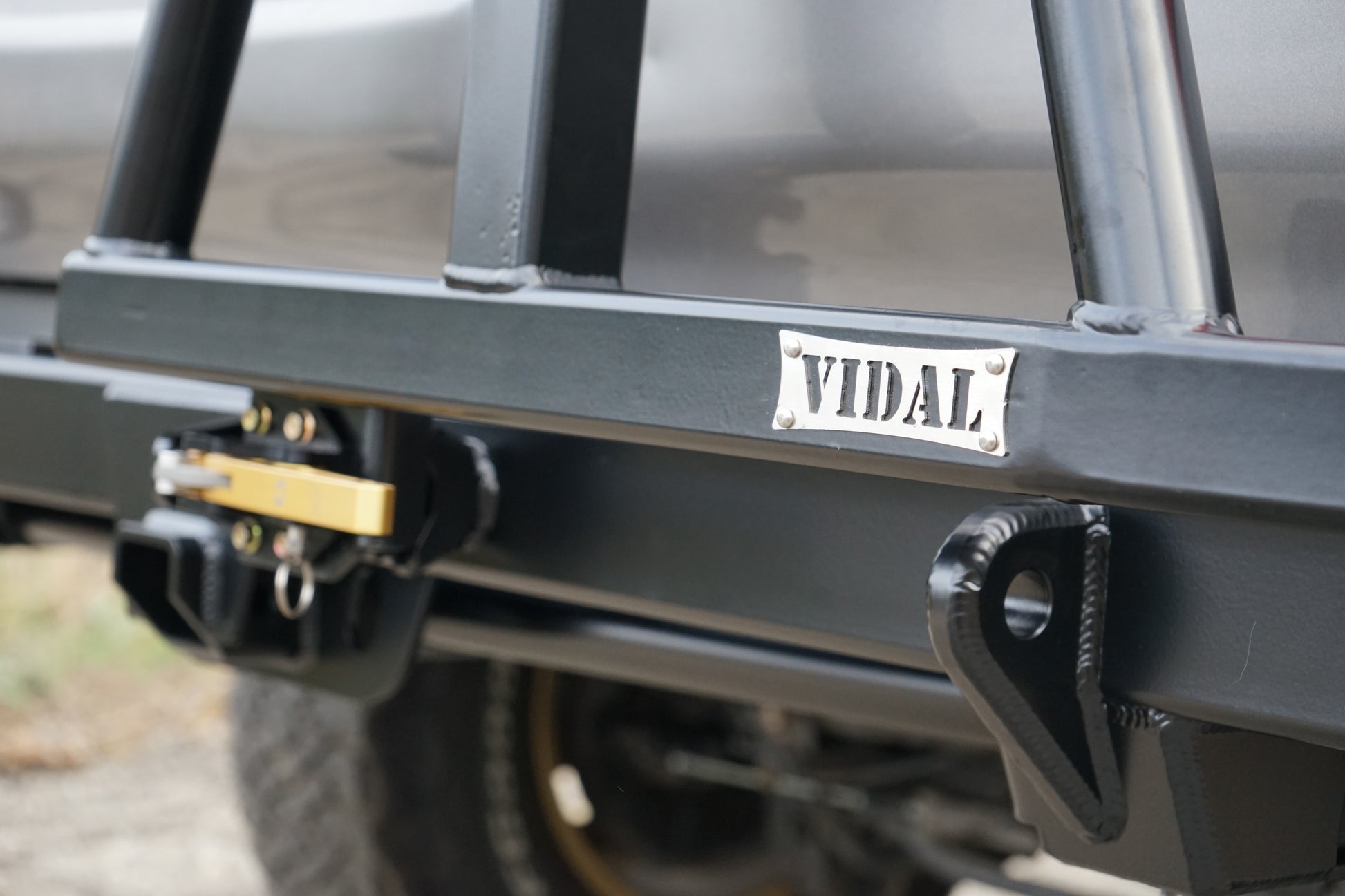

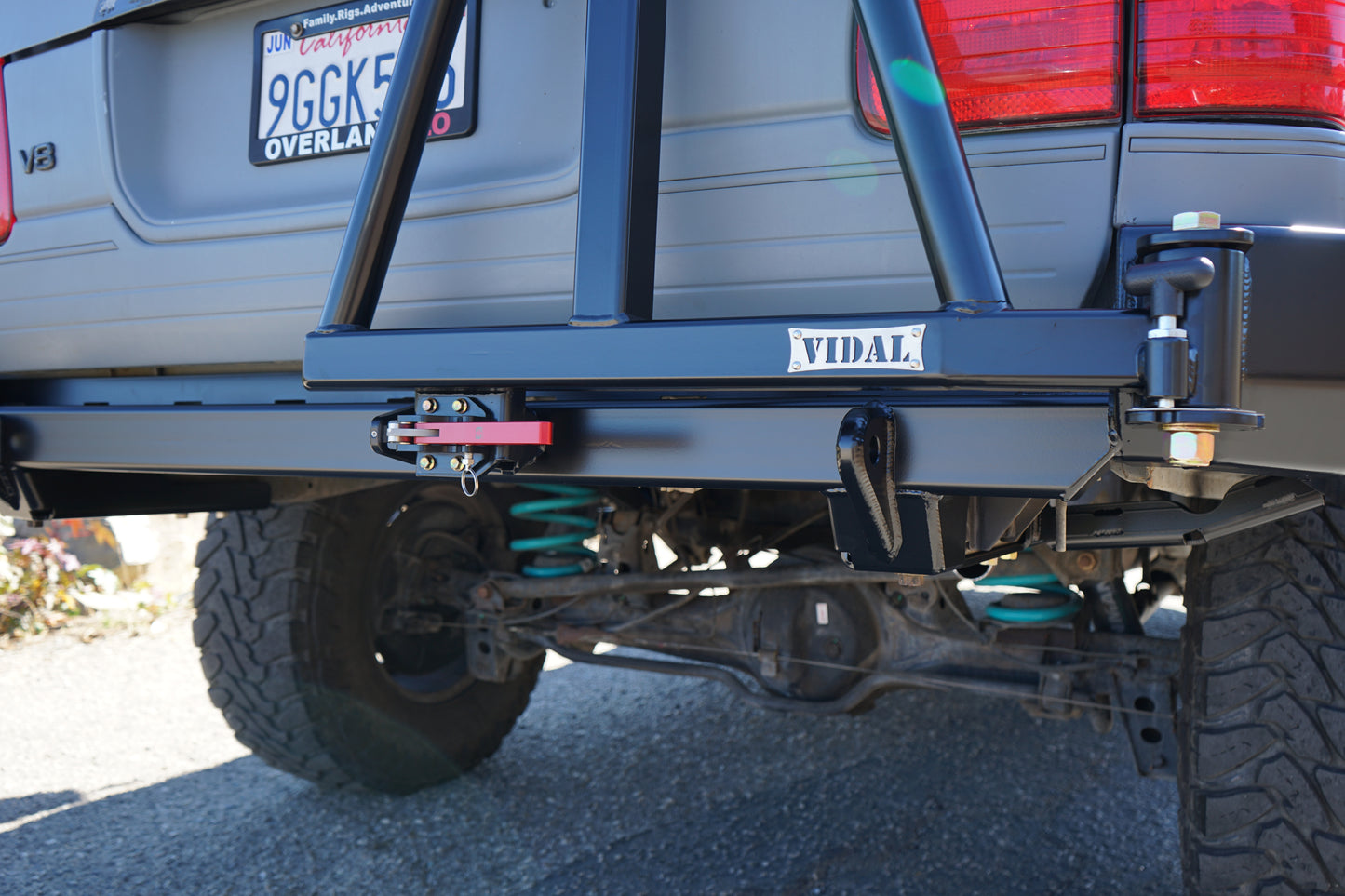

Our bumpers with swing out option come standard with the best latches in the industry! The E3 Machine Ultimate Billet Latch is a compression latch with a spring pin for that positive lock you crave. The design also features a pad lock hole if you want to keep your belongings safe.
*PLEASE CHOOSE LATCH COLOR AT CHECKOUT

Swing Out options also come standard with Ratha Sochenda's Heavy Duty Hinge Kit Assembly.

      Features:

  • Can open and lock to 90 or 120 degrees which means it’ll help clear your liftgate.
  • Comes with the option to have the plunger pin in the lock or free open position based of the wear pad of choice
  • Lower profile design
  • Hinge Bracket is laser cut 5/16″ thick steel
  • Stainless Steel Wear Pad with Socket Head Screw
  • High Quality 1000# Koyo Taper Roller Bearings
  • 3/4″ Grade 8 Bolt and Nylon Lock Washer
  • 2.375″ Diameter x 4″ Tall FULLY machine Hinge Body
  • Double Lip Dust Seals


 "Please be aware that the LC100/LX470 may have varying rear main frame measurements due to factors such as age, accidents, or manufacturing differences. Vidal Metal Worx considers these variations to ensure proper fitment for the NIGHTHAWK 100 Rear Bumper."

    *SHIPPING: Kindly be informed that to minimize shipping expenses, the NIGHTHAWK 100 rear bumper will be delivered to your designated FedEx Freight facility. VIDAL METAL WORX is a small company, and at this time, we do not have shipping rates comparable to larger brand-name companies, which is why pickup from the FedEx Freight location is required.*

     ***You will receive an email or phone call when your order is ready for Local Pick Up. Please disregard "Usually ready in 5+ days" in Product page.***
